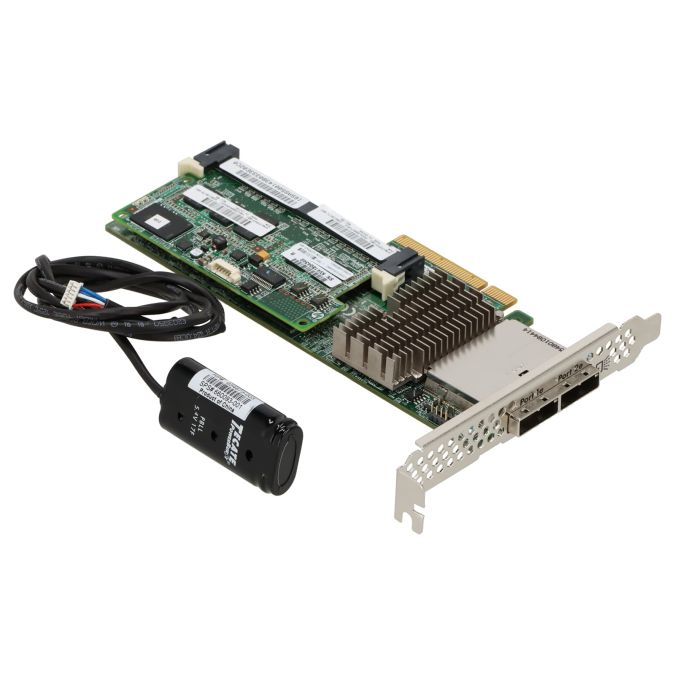

HPE Smart Array P421 8-CH SAS 6G 2GB PCI-E - 631674-B21
| MPN | 631674-B21 |
|---|---|
| Applicability | General |
| Manufacturer | HPE |
| SKU | 50011251 |
| Product Type | Home |
HPE Smart Array P421 8-CH SAS 6G 2GB PCI-E - 631674-B21 is an enterprise hardware item from HPE, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 50011251
- Stock status: InStock
- Product family: DL320e Gen8| DL360e Gen8| DL360p Gen8| DL380e Gen8| DL380p Gen8| DL385p Gen8| ML150 G6| ML310e Gen8| ML330 G6| ML350e Gen8| ML350p Gen8| ML370 G6
- Corresponding P/Ns: 631674-B21 633539-001 633543-001 660093-001
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller |
| Controller interface type | SAS 6G/SATA2 |
| Number of channels | 8 |
| Battery module | Yes |
| Data transfer rate in MByte/s | 600 |
| Low Profile | no |
| Max. number of peripheral devices | 24 |
| PCI variant | PCI-E x8 |
| Buffer size (MB) | 2048 |
| Battery type | Capacitor |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| RAID level 60 | Yes |
| Connections | |
| SAS/SATA (SFF-8088) 4x ext. - 26-pin | 2 |
Included in delivery: Item as described incl. 2048MB Memory incl. Battery backup module
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
