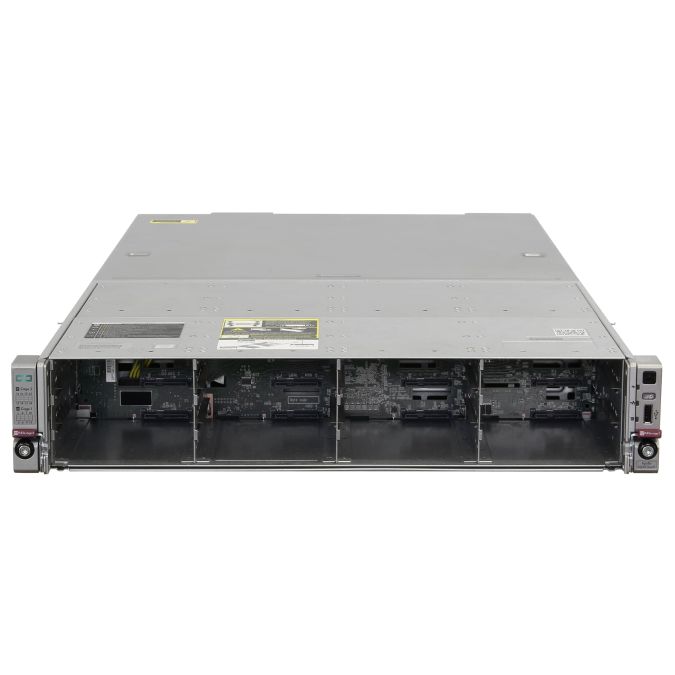

HPE Server Apollo 4200 Gen9 6xSFF 24xLFF P840ar H240
| MPN | 669281-001 |
|---|---|
| Applicability | Server |
| Manufacturer | HPE |
| SKU | 10010459 |
| Product Type | Server |
HPE Server Apollo 4200 Gen9 6xSFF 24xLFF P840ar H240 is an enterprise hardware item from HPE, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10010459
- Category: Server / HP / HPE / Apollo
- Stock status: InStock
- Corresponding P/Ns: 669281-001 808027-B21 809953-001 813586-001 Apollo 4200 Gen9 XL420 Gen9
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Number of CPUs | 0 |
| Number of CPU sockets | 2 |
| Memory type | DDR4 RAM |
| Hard disc type | 24x SAS/SATA LFF, 6x SAS/SATA SFF |
| Hot plug | Yes |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 1400 |
| Number of fans | 5 |
| Type of construction | Rack |
| Version | 9 |
| Remote management | Integrated Lights-Out 4 (iLO 4) - Standard |
| Data transfer rate (SAS) | 12 Gbps |
| Data transfer rate (Ethernet) | 10 Gbps, 1 Gbps |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 30 |
| PCI devices onboard | |
| Device_1 | Gigabit Ethernet 361i (Intel I350) |
| Device_2 | Smart Array P840ar 2GB + Battery |
| Device_3 | H240 Smart Host Bus Adapter |
| Device_5 | 10 Gigabit Ethernet Controller 560FLR-SFP+ |
| Expansion slots | |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 Low Profile | 3 |
| Connections | |
| VGA | 1 |
| Network - Ethernet - RJ-45 | 2 |
| Network - Ethernet - SFP+ | 2 |
| USB | 1 |
| USB 3.0 | 3 |
| Note | |
| CPU support | Xeon E5-26xx v3, Xeon E5-26xx v4 |
Included in delivery: Item as described incl. 2x 10GbE transceiver incl. Cache battery incl. Power cable w/o CPU w/o Dedicated iLO Management Port Kit w/o Hard disk frame w/o manual w/o Rack mounting rails w/o RAM w/o Software/driver
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
