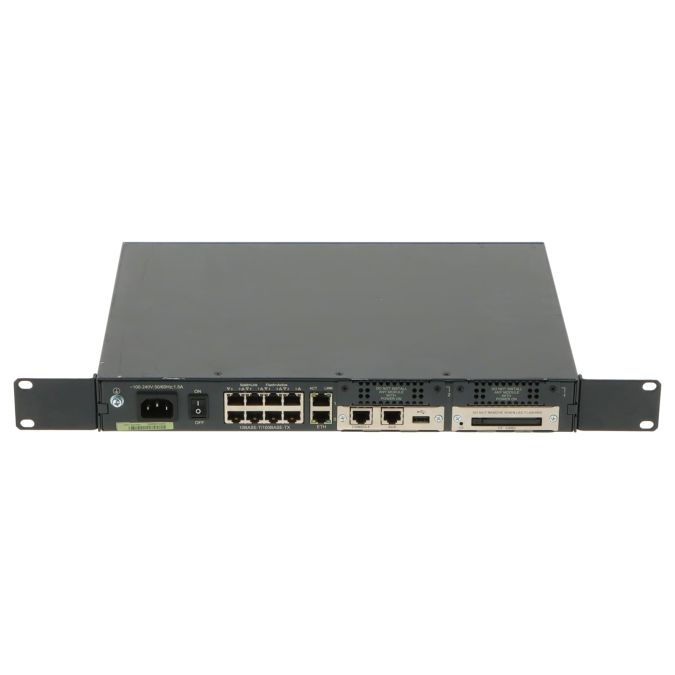

HPE MSR20-21 Router 2x SIC Module Slot 2x WAN 2x 100MBit - JD663B
| MPN | JD663-61001 |
|---|---|
| Applicability | Network |
| Manufacturer | HPE |
| SKU | 10009990 |
| Product Type | Router |
HPE MSR20-21 Router 2x SIC Module Slot 2x WAN 2x 100MBit - JD663B is an enterprise hardware item from HPE, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10009990
- Category: Network / Router
- Stock status: InStock
- Product family: HP X600 1G Compact Flash Card - JC684A| HP X600 256M Compact Flash Card - JC686A| HP X600 512M Compact Flash Card - JC685A
- Corresponding P/Ns: HP MSR20-21 HP MSR20-21 Router HPE MSR20-21 Router JD663-61001 JD663-61201 JD663B MSR20-21
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Router |
| Type of construction | Rack-mountable, 1U |
| Data transfer rate (Ethernet) | 10 Mbps, 100 Mbps |
| Flash memory (MB) | 256 |
| Maximum Power Rating | 100 watts |
| Processor | RISC @ 400MHz |
| RAM (MB) | 256 |
| Performance features | |
| ACL | Yes |
| BGP | BGP-4, BGP+ |
| FTP | Yes |
| IGMP | Yes |
| IS-IS | Yes |
| IS-ISv6 | Yes |
| OSPF | Yes |
| OSPFv3 | Yes |
| RADIUS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| RMON 1 | Yes |
| RMON 2 | Yes |
| RMON 3 | Yes |
| RMON 9 | Yes |
| SFTP | Yes |
| SNMPv1 | Yes |
| SNMPv2 | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| STP | Yes |
| TACACS+ | Yes |
| TFTP | Yes |
| Connections | |
| AUX - RJ-45 | 1 |
| Expansion slots (PCMCIA) | 1 |
| Network - Ethernet - RJ-45 | 10 |
| USB | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Modules | |
| Module slots (free) | 2 |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Compact Flash Card incl. Mounting bracket incl. Power cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
