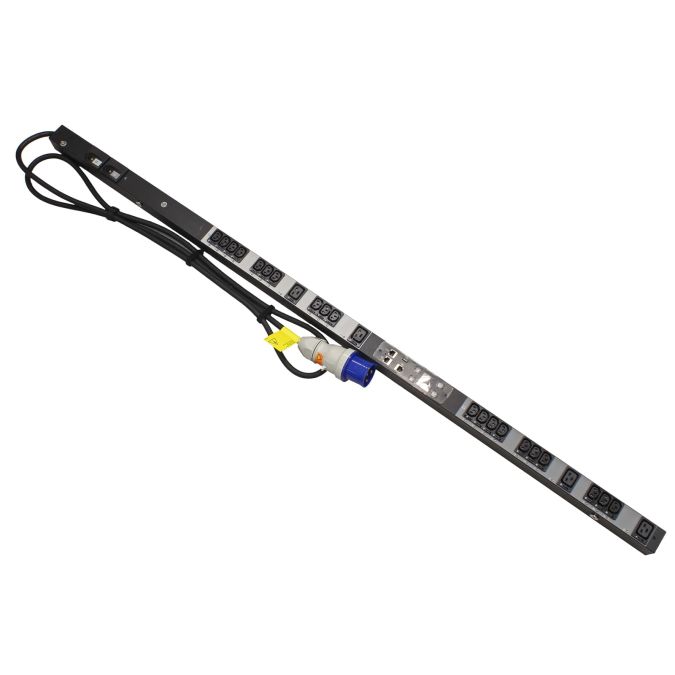

HPE Metered Switched maPDU INTL 7,3kVA 32A 20xC13 4xC19 H8B51A 780887-001 B-Ware
| MPN | 767160-004 |
|---|---|
| Applicability | Power |
| Manufacturer | HPE |
| SKU | 10009962 |
| Product Type | Power Supply |
HPE Metered Switched maPDU INTL 7,3kVA 32A 20xC13 4xC19 H8B51A 780887-001 B-Ware is an enterprise hardware item from HPE, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10009962
- Category: Parts / Power Supply / PDU
- Stock status: InStock
- Product family: HPE Advanced Series Rack| HPE Enterprise Series Rack| HPE Standard Series Rack| HPE Synergy 12000 Frame
- Corresponding P/Ns: 767160-004 780887-001 H8B51A HSTNR-P049-3
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | Power Distribution Unit (PDU) |
| Input voltage | 200V-240V AC |
| Output voltage | 230 VAC |
| Cable length | 3 m |
| Max. Amperage | 32 A |
| Max. Current per output | 10A C13, 16A C19 |
| Max. output power | 7.3kVA |
| Input connections | |
| IEC 60309 1P+N+PE 6h, 32A | 1 |
| Output connections | |
| IEC 60320 C19 | 4 |
| IEC 60320 C13 | 20 |
| Number of load segments | 2 |
| Interfaces | |
| USB | 1 |
| Network - Ethernet - RJ-45 | 2 |
| Management - RS-232 - RJ-45 | 1 |
| Features | |
| Access via browser | Yes |
| Event log | Yes |
| Password security | Yes |
| Restart devices remotely | Yes |
| Telnet administration | Yes |
| Protocols | |
| HTTP | Yes |
| HTTPS | Yes |
| SNMP | Yes |
| Note | |
| Optical defect | Pixel error on LCD. |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
