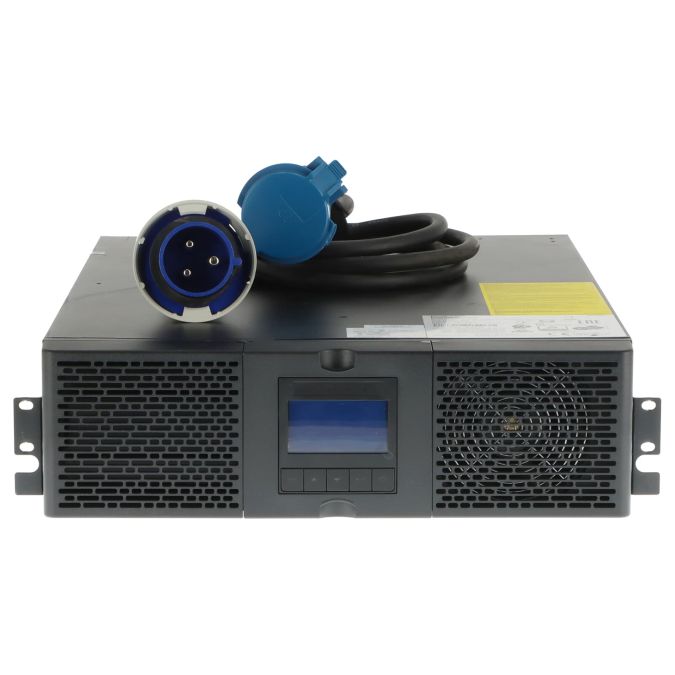

HPE G2 R6000 UPS 6000VA/5400W 32A/230V 4x C13 4x C19 3U Rackmount INTL - Q7G11A Batteries new
| MPN | 880163-003 |
|---|---|
| Applicability | Power |
| Manufacturer | HPE |
| SKU | 30010619 |
| Product Type | UPS |
HPE G2 R6000 UPS 6000VA/5400W 32A/230V 4x C13 4x C19 3U Rackmount INTL - Q7G11A Batteries new is an enterprise hardware item from HPE, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 30010619
- Category: Parts / Power Supply / UPS / Rack UPS
- Stock status: InStock
- Product family: HPE G2 R5000/6000 3U Rackmount WW Extended Runtime Module Q7G14A
- Corresponding P/Ns: 880163-003 HSTNR-U043-I P09828-001 Q7G11A
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | UPS |
| Input voltage | 200V-240V AC, single-phase |
| Output voltage | 200V-240V AC |
| Frequency limit (mains operation) | 50-60 Hz |
| Battery type | Maintenance-free, sealed lead-acid battery with suspended electrolyte, leak-proof |
| Battery status | The device is supplied with new batteries. |
| Max. Amperage | 30 A |
| Max. Current per output | 10A C13, 16A C19 |
| Max. output power | 5400 Watt / 6000 VA |
| Normal battery life at full load (manufacturer's specification) | 3 minutes (5400 watts) |
| Operating time at half load (manufacturer's specification) | 8.5 minutes (2700 watts) |
| Management | Yes |
| Data transfer rate (Ethernet) | 1 Gbps, 100 Mbps |
| Input connections | |
| ERM connection | 1 |
| IEC 60309 1P+N+PE 6h, 32A | 1 |
| Output connections | |
| IEC 60320 C19 | 4 |
| IEC 60320 C13 | 4 |
| IEC 60309 1P+N+PE, 32A | 1 |
| Number of load segments | 2 |
| Interfaces | |
| USB | 1 |
| Network - Ethernet - RJ-45 | 1 |
| Management - USB - Micro-USB | 1 |
| Charging time | |
| to 80% capacity | <, 4 hrs. |
| Complete charging | <, 24 hours |
| LED status display | |
| Operation | Yes |
| Battery operation | Yes |
| Battery change | Yes |
| Overload | Yes |
| Features | |
| Access via browser | Yes |
| Event log | Yes |
| Shutdown of the operating system | Yes |
| Password security | Yes |
| Restart devices remotely | Yes |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Batteries incl. Front panel incl. Management Card incl. Rack mounting bracket w/o Rack mounting rails w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
