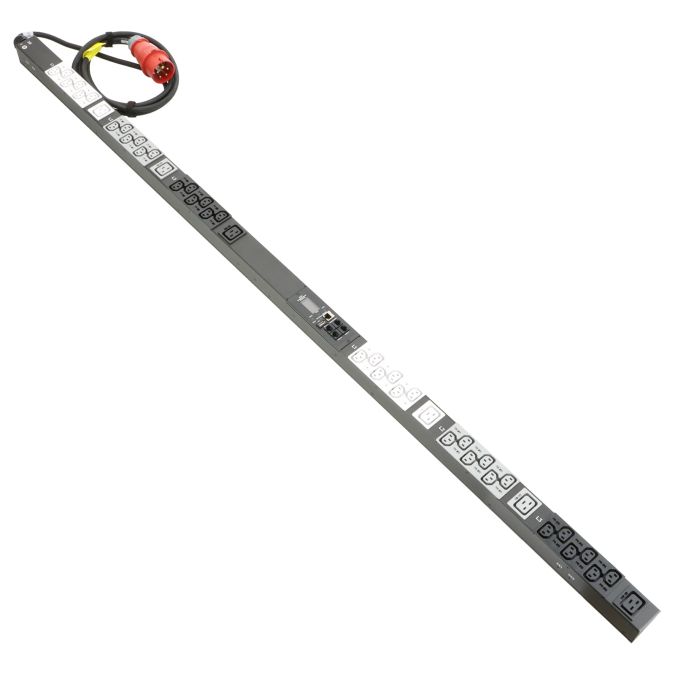

HPE G2 Metered Switched PDU INTL Vertical 16A 11kVA 36x C13 6x C19 - P9R61A
| MPN | 866833-020 |
|---|---|
| Applicability | Power |
| Manufacturer | HPE |
| SKU | 10010103 |
| Product Type | Server |
HPEHPE G2 Metered Switched PDU INTL Vertical 16A 11kVA 36x C13 6x C19 - P9R61A is an enterprise hardware item from HPEHPE, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10010103
- Stock status: InStock
- Product family: HPE Advanced Series Rack| HPE Enterprise Series Rack| HPE Standard Series Rack| HPE Synergy 12000 Frame
- Corresponding P/Ns: 866833-020 870304-001 HSTNR-P076-2 P9R61A
Use the product name, SKU and listed specifications to compare the item with your existing serverServer, storageStorage, workstation or networkNetwork configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | Power Distribution Unit (PDU) |
| Input voltage | 200V-240V/346V-415V |
| Output voltage | 200V-240V AC |
| Frequency limit (mains operation) | 50-60 Hz |
| Cable length | 3,0 m |
| Max. Amperage | 16 A |
| Max. Current per output | 10A C13, 16A C19 |
| Max. output power | 11kVA |
| Management | Yes |
| Data transfer rate (Ethernet) | 10 Mbps, 100 Mbps |
| Input connections | |
| IEC 60309 3P+N+PE 6h, 16A | 1 |
| Output connections | |
| IEC 60320 C19 | 6 |
| IEC 60320 C13 | 36 |
| Number of load segments | 3 |
| Interfaces | |
| USB | 1 |
| NetworkNetwork - Ethernet - RJ-45 | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Management - RS-485 - RJ-45 | 1 |
| Features | |
| Access via browser | Yes |
| Event log | Yes |
| Password security | Yes |
| Protocols | |
| HTTP | Yes |
| HTTPS | Yes |
| SSH | Yes |
| SNMPv1 | Yes |
| SNMPv3 | Yes |
| Note | |
| Optical defect | May show scratches and signs of use. |
| Technical defect | Display diffuse. |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
