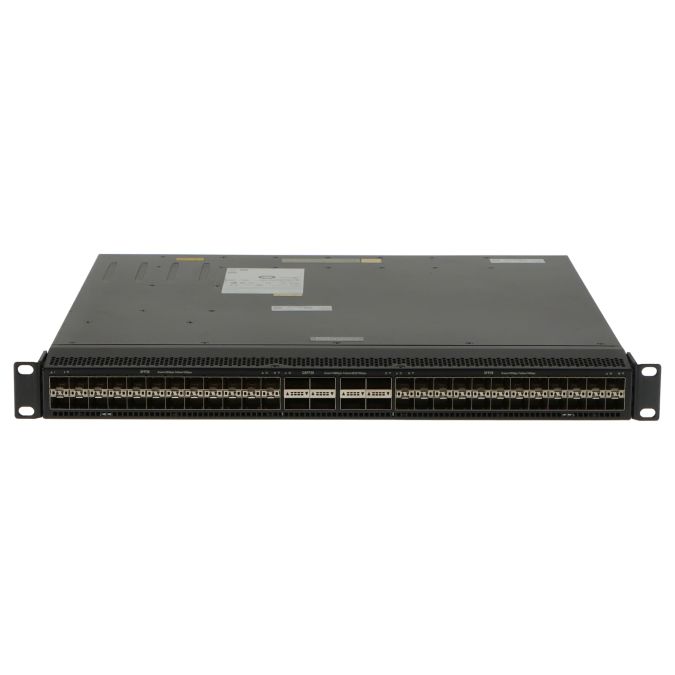

HPE FlexFabric 5945 Switch 48x SFP28 8x QSFP28 Back to Front 2x PSU - JQ074A
| MPN | JC680A |
|---|---|
| Applicability | Network |
| Manufacturer | HPE |
| SKU | 30004264 |
| Product Type | Transceiver |
HPE FlexFabric 5945 Switch 48x SFP28 8x QSFP28 Back to Front 2x PSU - JQ074A is an enterprise hardware item from HPE, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 30004264
- Stock status: InStock
- Corresponding P/Ns: FlexFabric 5945 JC680A JH389A JQ074-61001 JQ074A
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data Link Protocol | Gigabit Ethernet |
| Data transfer rate (Ethernet) | 100 Gbps, 25 Gbps, 10 Gbps, 1 Gbps |
| Flash memory | 1 GB |
| Maximum Power Rating | 650 watts |
| Number of fans | 5 |
| Power supply units | 2 |
| Max. number of power supply units | 2 |
| RAM | 8 GB |
| max. power | 4 Tbps |
| Airflow | Back to Front (Port-side exhaust) |
| Performance features | |
| ARP | Yes |
| BGP | BGP-4, BGP, BGP+ |
| CLI | Yes |
| DHCP | Yes |
| FTP | Yes |
| IGMP | Yes |
| IS-IS | Yes |
| IS-ISv6 | Yes |
| LACP | Yes |
| MAC Address Table Size | 288000 |
| MPLS | Yes |
| MSTP | Yes |
| Managebar | Yes |
| OSPF | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| RADIUS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| RIPng | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SSH | Yes |
| SSH v2 | Yes |
| STP | Yes |
| TACACS+ | Yes |
| Telnet | Yes |
| VLAN | Yes |
| VXLAN | Yes |
| VRRP | Yes |
| Connections | |
| Network - Ethernet - QSFP28 | 8 |
| Network - Ethernet - SFP | 2 |
| Network - Ethernet - SFP28 | 48 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - Ethernet - SFP | 1 |
| Management - RS-232 - Mini-USB | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Fan incl. Mounting bracket incl. Power cable incl. Power supplies w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
