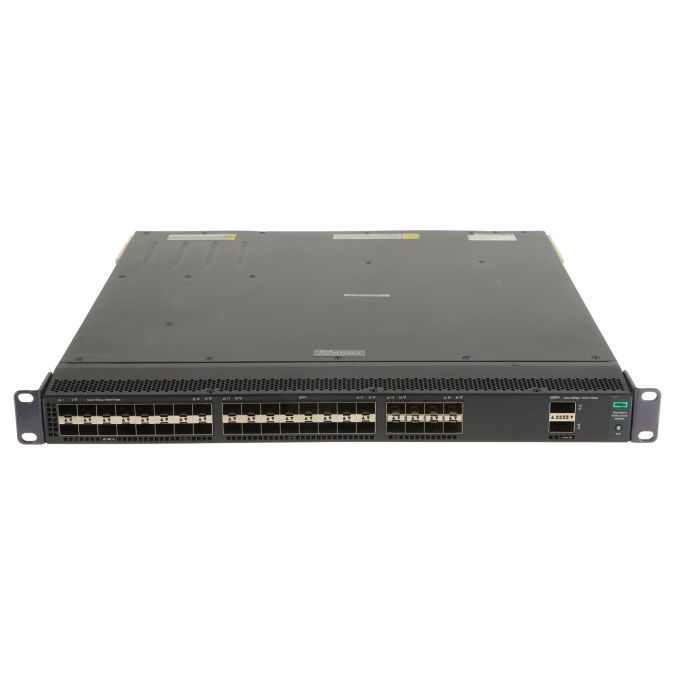

HPE FlexFabric 5700 Switch 40x 10GbE SFP+ 2x 40GbE QSFP+ w/o PSU/FAN - JG896A 5700-40XG-2QSFP+
In stock
SKU
10010340
€251.98
| MPN | JG896-61001 |
|---|---|
| Applicability | Network |
| Manufacturer | HPE |
| SKU | 10010340 |
| Product Type | Transceiver |
HPE FlexFabric 5700 Switch 40x 10GbE SFP+ 2x 40GbE QSFP+ w/o PSU/FAN - JG896A 5700-40XG-2QSFP+ is an enterprise hardware item from HPE, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10010340
- Category: Network / Switch / Ethernet Switch
- Stock status: InStock
- Product family: HPE 58x0AF Back (Power Side) to Front (Port Side) Airflow Fan Tray JC682A| HPE 58x0AF Front (Port Side) to Back (Power Side) Airflow Fan Tray JC683A| HPE A58x0AF Back (Power Side) to Front (Port Side) Airflow 300W AC Power Supply JG900A| HPE A58x0AF Back (Power Side) to Front (Port Side) Airflow 300W DC Power Supply JG901A| HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable JC784C| HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable JD095C| HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable JD096C| HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable JD097C| HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable JG081C| HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable JG326A| HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable JG327A| HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable JG328A| HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable JG329A| HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable JG330A| HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable JG331A| HPE X120 1G SFP LC BX 10-D Transceiver JD099B| HPE X120 1G SFP LC BX 10-U Transceiver JD098B| HPE X120 1G SFP LC LX Transceiver JD119B| HPE X120 1G SFP LC SX Transceiver JD118B| HPE X120 1G SFP RJ45 T Transceiver JD089B| HPE X130 10G SFP+ LC ER 40km Transceiver JG234A| HPE X130 10G SFP+ LC LR Transceiver JD094B| HPE X130 10G SFP+ LC SR Transceiver JD092B| HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver JL251A| HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver JG661A| HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver JL286A| HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver JG709A| HPE X140 40G QSFP+ MPO SR4 Transceiver JG325B| HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable JL288A| HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable JL289A| HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable JL287A
- Corresponding P/Ns: FlexFabric 5700 40XG 2QSFP+ JG896-61001 JG896-61101 JG896A
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data transfer rate (Ethernet) | 40 Gbps, 10 Gbps, 1 Gbps |
| Flash memory | 512 MB |
| Maximum Power Rating | 162 watts |
| Power supply units | 0 |
| Max. number of power supply units | 2 |
| RAM | 2 GB |
| max. power | 960 Gbps |
| Performance features | |
| ACL | Yes |
| ARP | Yes |
| BGP | Yes |
| CLI | Yes |
| DHCP | Yes |
| FTP | Yes |
| IGMP | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| IS-IS | Yes |
| IS-ISv6 | Yes |
| MAC Address Table Size | 128000 |
| MSTP | Yes |
| Managebar | Yes |
| OSPF | Yes |
| OSPFv3 | Yes |
| Port Mirroring | Yes |
| RADIUS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| RIPng | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SNTP | Yes |
| SSH | Yes |
| SSH v2 | Yes |
| STP | Yes |
| TACACS+ | Yes |
| TFTP | Yes |
| Telnet | Yes |
| VLAN | Yes |
| Connections | |
| Network - Ethernet - QSFP+ | 2 |
| Network - Ethernet - SFP+ | 40 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Mounting bracket w/o Fan modules w/o Power cable w/o Power supplies w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | JG896-61001 |
|---|---|
| Applicability | Network |
| Manufacturer | HPE |
| SKU | 10010340 |
| Product Type | Transceiver |
