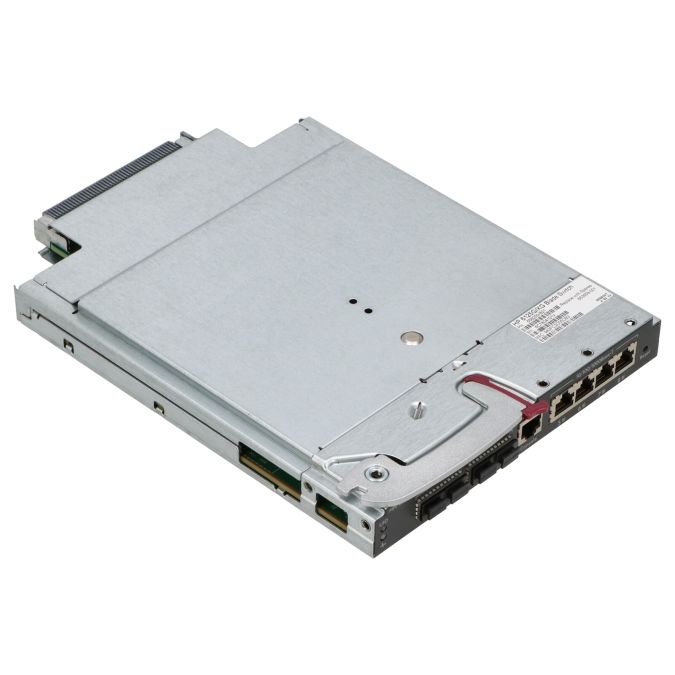

HPE Blade Switch 6125G/XG 1/10GbE RJ45/SFP+ c-Class - 663658-001 658250-B21
| MPN | 6125G/XG |
|---|---|
| Applicability | Network |
| Manufacturer | HPE |
| SKU | 50017019 |
| Product Type | Network Adapter |
HPE Blade Switch 6125G/XG 1/10GbE RJ45/SFP+ c-Class - 663658-001 658250-B21 is an enterprise hardware item from HPE, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 50017019
- Category: Network / Switch / Blade Switch
- Stock status: InStock
- Product family: HP FlexFabric 10Gb 2-port 554M Adapter| HP NC360m Dual Port 1GbE BL-c Adapter| HP NC364m Quad Port 1GbE BL-c Adapter| HP NC532m Dual Port Flex-10 10GbE Multifunction BL-c Adapter| HP NC551m Dual Port FlexFabric 10Gb Converged Network Adapter| HP NC552m 10Gb 2-port Flex-10 Ethernet Adapter| HP NC553m 10Gb 2-port FlexFabric Adapter| HPE 6125G/XG Ethernet Blade Switch| HPE BladeSystem c3000 Enclosure| HPE BladeSystem c7000 Enclosure | HPE BladeSystem c7000 Enclosure and Server Blades - Carrier Grade Supplement| HPE Flex-10 10Gb 2-port 530FLB Adapter| HPE Flex-10 10Gb 2-port 530M Adapter| HPE FlexFabric 20Gb 2-port 630FLB Adapter| HPE FlexFabric 20Gb 2-port 630M Adapter| HPE Integrity BL860c i2 Server Blade| HPE Integrity BL860c i4 Server Blade| HPE Integrity BL860c Server Blade| HPE Integrity BL870c i2 Server Blade| HPE Integrity BL870c i4 Server Blade| HPE Integrity BL870c Server Blade| HPE Integrity BL890c i2 Server Blade| HPE Integrity BL890c i4 Server Blade| HPE ProLiant BL260c G5| HPE ProLiant BL280c G6| HPE ProLiant BL2x220c G5| HPE ProLiant BL2x220c G7| HPE ProLiant Bl420c Gen8| HPE ProLiant BL460c| HPE ProLiant BL460c G5| HPE ProLiant BL460c G6| HPE ProLiant BL460c G7| HPE ProLiant BL460c Gen8| HPE ProLiant BL460c Gen9| HPE ProLiant BL465 G5| HPE ProLiant BL465 G6| HPE ProLiant BL465c| HPE ProLiant BL465c G7| HPE ProLiant BL465c Gen8| HPE ProLiant BL480c| HPE ProLiant BL490c G6| HPE ProLiant BL490c G7| HPE ProLiant BL495c G5| HPE ProLiant BL495c G6| HPE ProLiant BL620c G7| HPE ProLiant BL660c Gen8| HPE ProLiant BL660c Gen9| HPE ProLiant BL680c G5| HPE ProLiant BL680c G7| HPE ProLiant BL685 G5| HPE ProLiant BL685 G6| HPE ProLiant BL685c| HPE ProLiant BL685c G7| HPE ProLiant WS460c Gen8| HPE ProLiant WS460c Gen9
- Corresponding P/Ns: 6125G/XG 658250-B21 663658-001
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Plug-in module |
| Data Link Protocol | Gigabit Ethernet, 10GbE |
| Data transfer rate (Ethernet) | 10 Gbps, 1 Gbps |
| Flash memory (MB) | 256 |
| Maximum Power Rating | 41 watts |
| RAM (MB) | 1024 |
| max. power | 44 Gbps uplink, 16 Gbps downlink |
| Performance features | |
| ACL | Yes |
| ARP | Yes |
| BGP | BGP-4, BGP, BGP+ |
| DHCP | Yes |
| HTTPS | Yes |
| IGMPv3 | Yes |
| IPsec | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| LACP | Yes |
| MAC Address Table Size | 32000 |
| MSTP | Yes |
| OSI layer | 3 |
| OSPF | Yes |
| OSPFv3 | Yes |
| Port Mirroring | Yes |
| QoS | Yes |
| RADIUS | Yes |
| RIP v1 | Yes |
| RMON 1 | Yes |
| RRPP (Rapid Ring Protection Protocol) | Yes |
| RSTP | Yes |
| SFTP | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| SSM | Yes |
| STP | Yes |
| TACACS+ | Yes |
| Telnet | Yes |
| VLAN | 4094 VLANs |
| VRRP | Yes |
| Product certifications (IEEE) | |
| 802.1D Spanning Tree Protocol (STP) | Yes |
| 802.1Q Tagged VLAN (frame tagging on all ports when VLANs are enabled) | Yes |
| 802.1ag Connectivity Fault Management | Yes |
| 802.1p Class of Service (CoS) prioritisation | Yes |
| 802.1s Multiple STP (MSTP) | Yes |
| 802.1w Rapid STP (RSTP) | Yes |
| 802.1x port-based authentication | Yes |
| 802.3ad Link Aggregation Control Protocol | Yes |
| 802.3ae 10GBASE-LR long range fibre optics | Yes |
| 802.3ae 10GBASE-SR short range fibre optics | Yes |
| 802.3x full-duplex flow control | Yes |
| Connections | |
| Network - Ethernet - RJ-45 | 4 |
| Network - Ethernet - SFP+ | 4 |
| Management - RS-232 - RJ-45 | 1 |
| Note | |
| External 10Gb port | 4 |
| External 1Gb port | 4 |
| Internal 1Gb port | 16 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
