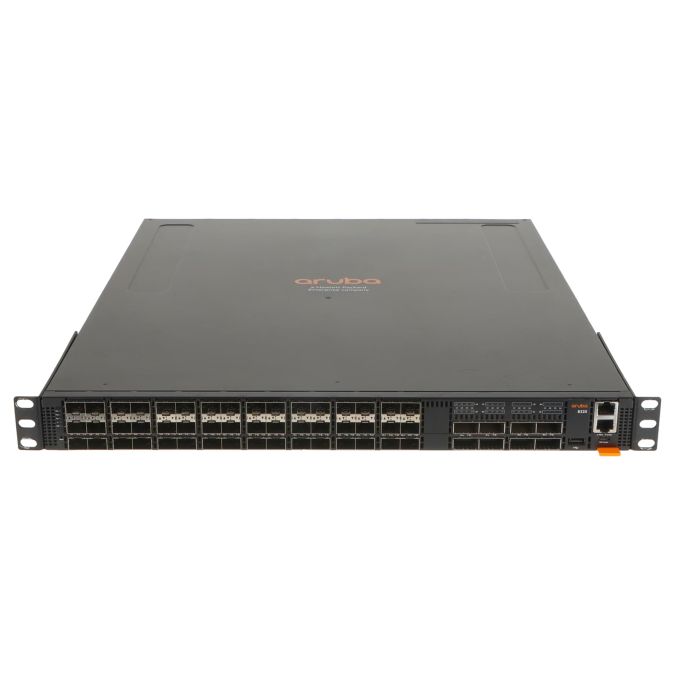

HPE Aruba Networking CX 8325-48Y8C Switch 48x 25GbE SFP28 8x 100GbE QSFP28 w/o PSU/Fans - JL635A
| MPN | JL635-60001 |
|---|---|
| Applicability | Network |
| Manufacturer | HPE |
| SKU | 10010282 |
| Product Type | Transceiver |
HPE Aruba Networking CX 8325-48Y8C Switch 48x 25GbE SFP28 8x 100GbE QSFP28 w/o PSU/Fans - JL635A is an enterprise hardware item from HPE, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10010282
- Category: Network / Switch / Ethernet Switch
- Stock status: InStock
- Product family: HPE Aruba Networking 8325 650W 100-240VAC Back-to-Front Power Supply JL633A| HPE Aruba Networking 8325 650W 100-240VAC Front-to-Back Power Supply JL632A| HPE Aruba Networking 8325 850W 48VDC Back-to-Front Power Supply JL862A| HPE Aruba Networking 8325 850W 48VDC Front-to-Back Power Supply JL861A| HPE Aruba Networking 8325-48Y8C Back-to-Front Fan JL629A| HPE Aruba Networking 8325-48Y8C Front-to-Back Fan JL628A
- Corresponding P/Ns: 8325 48Y8C Aruba Networking CX 8325-48Y8C JL635-60001 JL635A
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data Link Protocol | Gigabit Ethernet |
| Data transfer rate (Ethernet) | 100 Gbps, 40 Gbps, 25 Gbps, 10 Gbps, 1 Gbps |
| Flash memory | 8 GB |
| Maximum Power Rating | 586 watts |
| Number of fans | 0 |
| Power supply units | 0 |
| Max. number of power supply units | 2 |
| RAM | 16 GB |
| max. power | 6.4 Tbps |
| Performance features | |
| ACL | Yes |
| ARP | Yes |
| BGP | BGP-4 |
| CLI | Yes |
| DHCP | Yes |
| ECMP (Equal Cost Multipath Routing) | Yes |
| FTP | Yes |
| GRE | Yes |
| IGMP | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| LACP | Yes |
| MAC Address Table Size | 98.304 |
| Managebar | Yes |
| NLB (Network load balancing) | Yes |
| OSI layer | 2, 3 |
| OSPFv3 | Yes |
| PTP (Precision Time Protocol) | Yes |
| Port Mirroring | Yes |
| QoS | Yes |
| RADIUS | Yes |
| RIP v2 | Yes |
| RIPng | Yes |
| RMON 1 | Yes |
| RPVST+ (Rapid Per VLAN Spanning Tree) | Yes |
| RSTP | Yes |
| SFTP | Yes |
| SNMPv1 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| SSM | Yes |
| STP | Yes |
| TACACS+ | Yes |
| TFTP | Yes |
| VLAN | 4040 VLANs |
| VXLAN | Yes |
| VRRP | Yes |
| Connections | |
| Network - Ethernet - QSFP28 | 8 |
| Network - Ethernet - SFP28 | 48 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - Micro-USB | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Mounting bracket w/o Fan w/o Power supply unit w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
