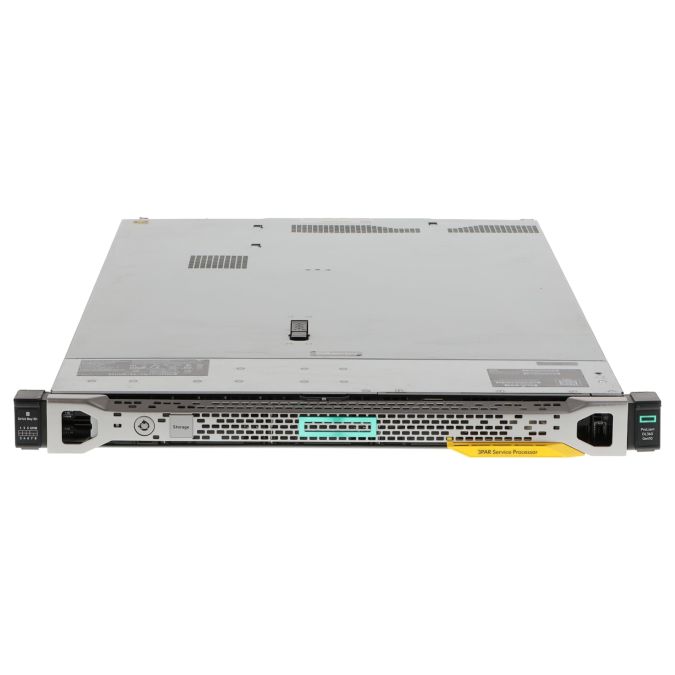

HPE 3PAR RPS Service Processor ProLiant DL360 Gen10 StoreServ 8k 9k 20k Q2S13A
| MPN | P07157-001 |
|---|---|
| Applicability | Storage |
| Manufacturer | HPE |
| SKU | 10009856 |
| Product Type | Server |
HPE 3PAR RPS Service Processor ProLiant DL360 Gen10 StoreServ 8k 9k 20k Q2S13A is an enterprise hardware item from HPE, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10009856
- Stock status: InStock
- Product family: HPE 3PAR OS 3.3.1 EGA| HPE 3PAR OS 3.3.1 EMU1| HPE 3PAR OS 3.3.1 GA| HPE 3PAR OS 3.3.1 MU1| HPE 3PAR OS 3.3.1 MU2| HPE 3PAR OS 3.3.1 MU3| HPE 3PAR OS 3.3.1 MU5| HPE 3PAR OS 3.3.2 EMU1| HPE 3PAR OS 3.3.2 GA| HPE 3PAR OS 3.3.2 MU1| HPE 3PAR StoreServ 10000 Series| HPE 3PAR StoreServ 20000 Series| HPE 3PAR StoreServ 20450| HPE 3PAR StoreServ 20800| HPE 3PAR StoreServ 20800 R2| HPE 3PAR StoreServ 20840| HPE 3PAR StoreServ 20840 R2| HPE 3PAR StoreServ 20850| HPE 3PAR StoreServ 20850 R2| HPE 3PAR StoreServ 7000 Series| HPE 3PAR StoreServ 7200| HPE 3PAR StoreServ 7200c| HPE 3PAR StoreServ 7400| HPE 3PAR StoreServ 7400c| HPE 3PAR StoreServ 7440c| HPE 3PAR StoreServ 7450| HPE 3PAR StoreServ 7450c| HPE 3PAR StoreServ 8000 Series| HPE 3PAR StoreServ 8200| HPE 3PAR StoreServ 8400| HPE 3PAR StoreServ 8440| HPE 3PAR StoreServ 8450| HPE 3PAR StoreServ 9000 Series| HPE 3PAR StoreServ 9450
- Corresponding P/Ns: P07157-001 Q2S13A
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Silver 4110 |
| Number of CPUs | 1 |
| Base type | FCLGA3647 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2100 |
| Intel Smart Cache (MB) | 11 |
| Number of cores per CPU | 8 |
| Working memory (GB) | 8 |
| Memory type | DDR4 RAM |
| Hard disc type | SATA |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 500 |
| Number of fans | 5 |
| Type of construction | Rack |
| Data transfer rate (SAS) | 6 Gbps, 3 Gbps |
| Data transfer rate (SATA) | 6 Gbps, 3 Gbps |
| Data transfer rate (Ethernet) | 1 Gbps |
| Hard drives - further HDDs or frames on request | |
| 1 TB SATA | 2 |
| Total capacity (TB) | 2 |
| max. hard discs | 8 |
| Other drives | |
| DVD-ROM | Yes |
| PCI devices onboard | |
| Device_1 | Gigabit Ethernet 331i (NetXtreme BCM5719) |
| Device_2 | Smart Array E208i-a SR Gen10 (No Cache, No Battery) |
| Device_3 | S-ATA controller |
| Expansion slots | |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 | 1 |
| Connections | |
| VGA | 1 |
| Network - Ethernet - RJ-45 | 4 |
| USB | 4 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - DB9 | 1 |
| Note | |
| Special feature | Incl. Service Processor Software v5.1.1.0. |
| Special feature 2 | Other software versions on request. |
Included in delivery: Item as described incl. Front panel with key incl. Power cable incl. Software w/o Rack mounting rails w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
