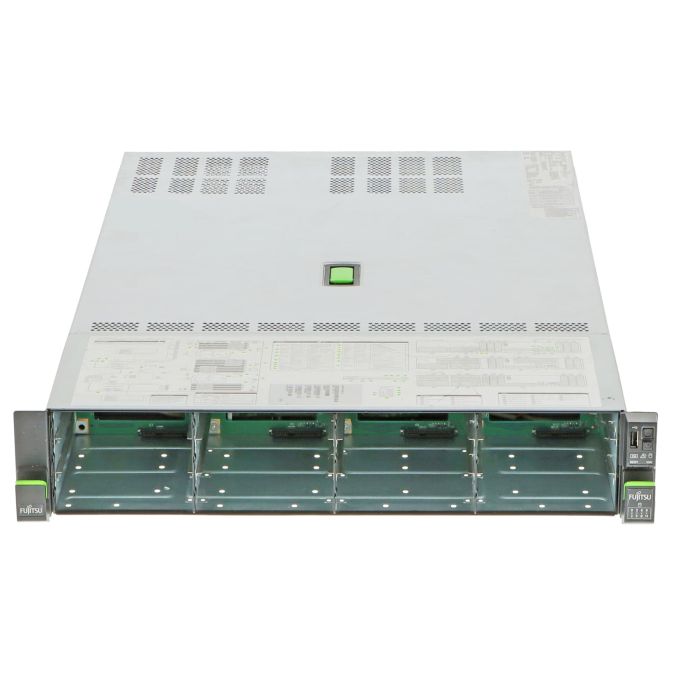

Fujitsu RX2540 M4 Server 2x Gold 6130 16C 2,1GHz 512GB 12x LFF 4x SFF EP420i
| Applicability | Server |
|---|---|
| Manufacturer | Fujitsu |
| SKU | 30006875 |
| Product Type | Server |
Fujitsu RX2540 M4 Server 2x Gold 6130 16C 2,1GHz 512GB 12x LFF 4x SFF EP420i is an enterprise hardware item from Fujitsu, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Fujitsu
- SKU: 30006875
- Category: Server / Fujitsu / Primergy M4
- Stock status: InStock
- Corresponding P/Ns: Fujitsu Primergy RX2540 M4 Server
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6130 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2100 |
| Number of cores per CPU | 16 |
| Working memory (GB) | 512 |
| Memory type | DDR4 RAM |
| Hard disc type | 12x SAS/SATA LFF, 4x SSD/SATA SFF |
| Hot plug | Yes |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 800 |
| Number of fans | 6 |
| Type of construction | Rack |
| Version | M4 |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 16 |
| PCI devices onboard | |
| Device_1 | Gigabit Ethernet Controller I350 |
| Device_2 | PRAID EP420i 2GB + Battery |
| Device_3 | Onboard S-ATA RAID controller (RAID 0, 1) |
| Device_4 | Integrated Remote Management Controller (iRMC S5) |
| Expansion slots | |
| M.2 | 2 |
| OCP Mezzanine Connector | 1 |
| PCIe 3.0 x8 Low Profile | 2 |
| PCIe 3.0 x16 Low Profile | 3 |
| Connections | |
| VGA | 1 |
| Gigabit Ethernet, RJ-45 | 2 |
| Management | 1 |
| USB | 1 |
| USB 3.0 | 3 |
Included in delivery: Item as described incl. Power cable w/o Dummies w/o Hard disk frame w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
