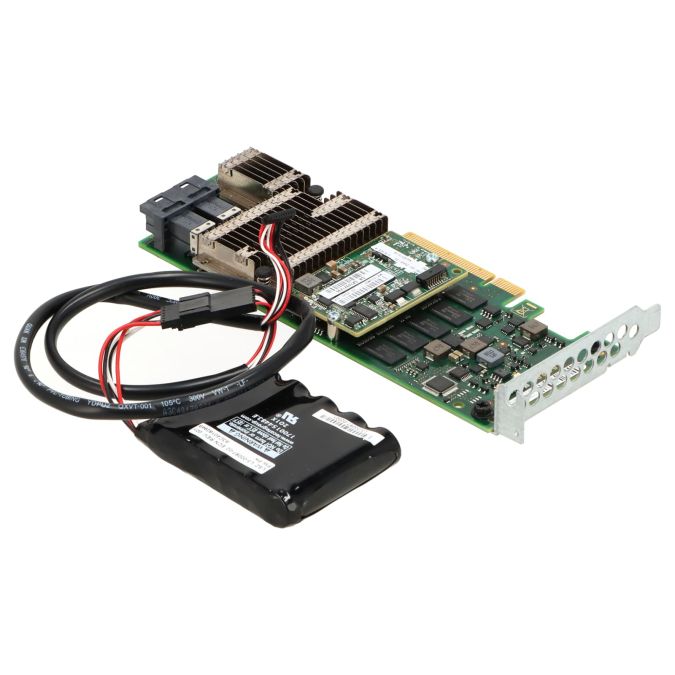

Fujitsu RAID Controller PRAID EP420i 8-Port 2GB PCI-e inkl FBU LP - D3216-B23
| MPN | A3C40174716 |
|---|---|
| Applicability | Server |
| Manufacturer | Fujitsu |
| SKU | 50022746 |
| Product Type | RAID Controller |
Fujitsu RAID Controller PRAID EP420i 8-Port 2GB PCI-e inkl FBU LP - D3216-B23 is an enterprise hardware item from Fujitsu, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Fujitsu
- SKU: 50022746
- Stock status: InStock
- Product family: FUJITSU PRIMERGY CX2550 M4 Server| FUJITSU PRIMERGY CX2550 M5 Server| FUJITSU PRIMERGY CX2560 M4 Server| FUJITSU PRIMERGY CX2560 M5 Server| FUJITSU PRIMERGY CX2570 M4 Server| FUJITSU PRIMERGY RX1330 M4 Server| FUJITSU PRIMERGY RX2520 M4 Server| FUJITSU PRIMERGY RX2520 M5 Server| FUJITSU PRIMERGY RX2530 M4 Server| FUJITSU PRIMERGY RX2530 M5 Server| FUJITSU PRIMERGY RX2540 M4 Server| FUJITSU PRIMERGY RX2540 M5 Server| FUJITSU PRIMERGY RX4770 M2 Server| FUJITSU PRIMERGY RX4770 M3 Server| FUJITSU PRIMERGY RX4770 M4 Server| FUJITSU PRIMERGY RX4770 M5 Server| FUJITSU PRIMERGY SX960 S1 Server| FUJITSU PRIMERGY TX1320 M3 Server| FUJITSU PRIMERGY TX1320 M4 Server| FUJITSU PRIMERGY TX1330 M3 Server| FUJITSU PRIMERGY TX1330 M4 Server| FUJITSU PRIMERGY TX2550 M4 Server| FUJITSU PRIMERGY TX2550 M5 Server| FUJITSU PRIMERGY TX2550 M7 Server
- Corresponding P/Ns: A3C40174716 A3C40185949 A3C40203774 D3216-B23 D3216-B23 GS 1
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller |
| Controller interface type | SAS 12G/SATA 6G |
| Number of channels | 8 |
| Capacitor Pack | Yes |
| Controller cache memory (GB) | 2 |
| Data transfer rate in MByte/s | 1200 |
| Low Profile | Yes |
| Max. number of peripheral devices | 8 |
| PCI variant | PCI-E 3.0 x8 |
| Slot compatibility | at least PCI-E x8 |
| Battery type | Capacitor |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| RAID level 60 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 2 |
Included in delivery: Item as described incl. Flash Backup Unit (FBU) incl. Flash Backup Unit (FBU) Cable incl. TFM Module
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
