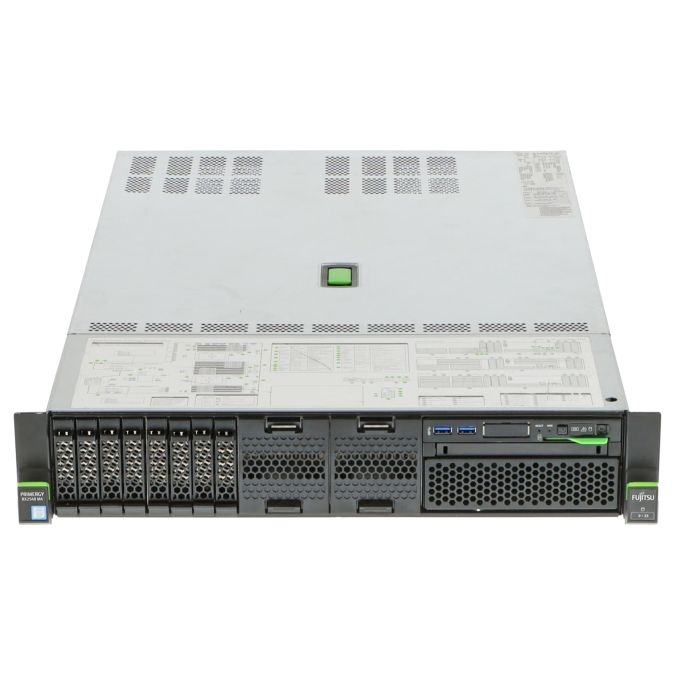

Fujitsu Primergy RX2540 M4 Server 2x Gold 6146 12C 3.2GHz 768GB RAM 8xSFF CP400i
| MPN | S26361-K1567-V408 |
|---|---|
| Applicability | Server |
| Manufacturer | Fujitsu |
| SKU | 30005380 |
| Product Type | Server |
Fujitsu Primergy RX2540 M4 Server 2x Gold 6146 12C 3.2GHz 768GB RAM 8xSFF CP400i is an enterprise hardware item from Fujitsu, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Fujitsu
- SKU: 30005380
- Stock status: InStock
- Corresponding P/Ns: Fujitsu Primergy RX2540 M4 Server S26361-K1567-V408
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6146 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 3200 |
| Intel Smart Cache (MB) | 24,75 |
| Number of cores per CPU | 12 |
| Working memory (GB) | 768 |
| Memory type | DDR4 RAM |
| Number of DIMM slots | 24 |
| Hard disc type | SAS/SATA SFF |
| Hot plug | Yes |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 800 |
| Number of fans | 6 |
| Type of construction | Rack |
| Version | M4 |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 8 |
| PCI devices onboard | |
| Device_1 | Gigabit Ethernet Controller I350 |
| Device_2 | PRAID CP400i SAS/SATA RAID controller |
| Device_4 | Integrated Remote Management Controller (iRMC S5) |
| Expansion slots | |
| M.2 | 2 |
| OCP Mezzanine Connector | 1 |
| PCIe 3.0 x8 Low Profile | 3 |
| PCIe 3.0 x16 Low Profile | 3 |
| Connections | |
| VGA | 1 |
| Gigabit Ethernet, RJ-45 | 2 |
| Management | 1 |
| USB | 1 |
| USB 3.0 | 3 |
Included in delivery: Item as described incl. Blanking panels for hard disk bays incl. Power cable w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
