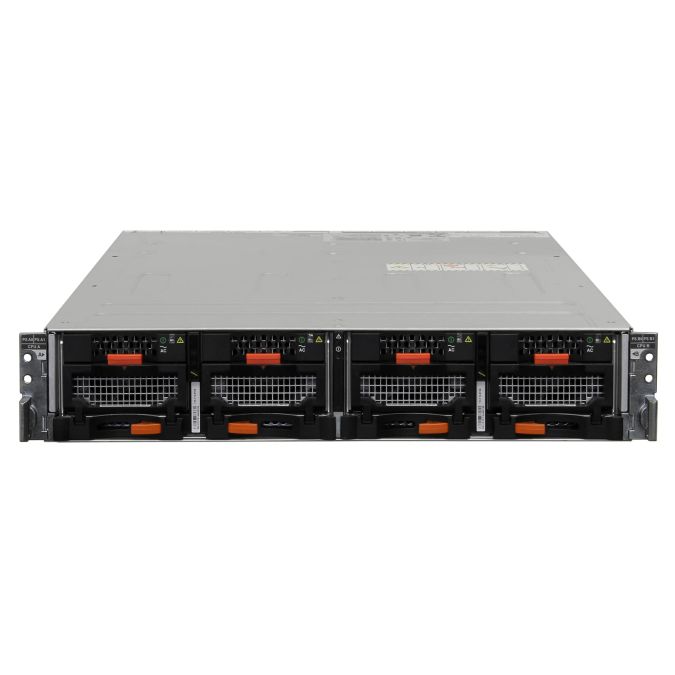

EMC Symmetrix VMAX 10K Engine 144GB FC 8Gbps - 100-886-214
| MPN | 071-000-543 |
|---|---|
| Applicability | Storage |
| Manufacturer | EMC |
| SKU | 10007417 |
| Product Type | Storage Controller |
EMC Symmetrix VMAX 10K Engine 144GB FC 8Gbps - 100-886-214 is an enterprise hardware item from EMC, suitable for storage, backup and data-center expansion projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: EMC
- SKU: 10007417
- Category: Parts / Storage parts / Storage Controller
- Stock status: InStock
- Product family: EMC Symmetrix VMAX 10K
- Corresponding P/Ns: 071-000-543 100-562-479 100-563-109 100-563-424 100-563-451 100-886-214 110-113-872B 303-086-101 303-092-102 303-113-700B 303-129-101B 303-186-100A TRPE
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | SAN Storage Controller |
| Number of power supply units | 4 |
| Total cache memory (GB) | 144 |
| Controller cache memory (GB) | 72 |
| Data transfer rate (Ethernet) | 1 Gbps |
| Data transfer rate (FC) | 8 Gbps, 4 Gbps |
| RAID level | 1, 5, 6 |
| Controller | |
| EMC 1-Port FC 4Gb I/O Module | 4 |
| EMC 3 Gb SRIO v3 I/O Module | 2 |
| EMC 4-Port FC 8Gb UltraFlex I/O Module | 4 |
| EMC Management Module | 2 |
| Connections | |
| Extension - FC - QSFP | 4 |
| Network - FC - SFP+ | 16 |
| Network - SRIO - QSFP | 4 |
| Power supply - IEC 60320 C14 | 2 |
| Management - Ethernet - RJ-45 | 4 |
| Administration - MicroDSub | 4 |
Included in delivery: Item as described incl. 16x 8Gb GBICs incl. eFlash memory incl. Power cable w/o Front panel w/o Rack mounting rails w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
