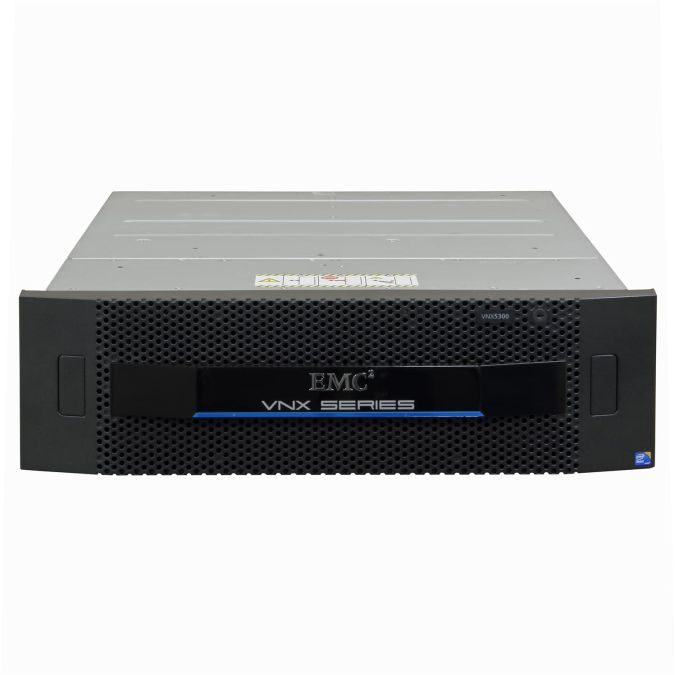

EMC Disk Processor Enclosure VNX5300 Block LFF FC 8Gb incl. 300GB VAULT Drives
| MPN | 071-000-529 |
|---|---|
| Applicability | Storage |
| Manufacturer | EMC |
| SKU | 10005904 |
| Product Type | Storage Array |
EMC Disk Processor Enclosure VNX5300 Block LFF FC 8Gb incl. 300GB VAULT Drives is an enterprise hardware item from EMC, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: EMC
- SKU: 10005904
- Stock status: InStock
- Product family: Dell/EMC VNX5300
- Corresponding P/Ns: 071-000-529 0GJ24J 100-563-435 110-140-408B 900-567-002 GJ24J STPE15
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | SAN Storage |
| Hard disc type | SAS, SSD |
| Number of power supply units | 2 |
| Number of installed hard drives | 4 |
| max. hard discs | 15 |
| Total cache memory (GB) | 16 |
| Controller cache memory (GB) | 8 |
| Data transfer rate (Ethernet) | 1 Gbps |
| Data transfer rate (FC) | 8Gpps, 4 Gbps, 2 Gbps |
| Data transfer rate (SAS) | 6 Gbps |
| Hard disc size in GB | 300 |
| RAID level | 0, 1, 3, 5, 6, 10 |
| Storage media | |
| 300 GB SAS 15k | 4 |
| Controller | |
| EMC Storage Processor w/ 4C 1.6Ghz w/o UltraFlex I/O | 2 |
| UltraFlex I/O Module Slot (free) | 4 |
| Connections | |
| Extension - SAS - SFF-8088 | 4 |
| Network - FC - SFP+ | 8 |
| Management - Ethernet - RJ-45 | 4 |
| Management - RS-232 - D-Sub Micro | 2 |
| Note | |
| Special feature | Block version |
Included in delivery: Item as described incl. 8x 8Gb GBICs incl. Front panel without key incl. Power cable w/o Rack mounting rails w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
