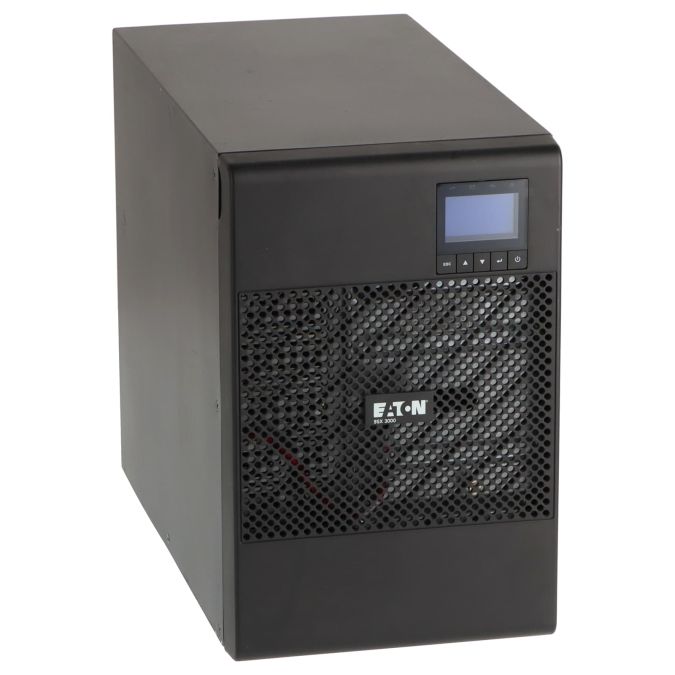

Eaton USV 9SX3000I UPS 2700W/3000VA 8x C13 1x C19 Tower - 9SX3000I Akkus neu
| MPN | 9103-83957 |
|---|---|
| Applicability | Power |
| Manufacturer | EATON |
| SKU | 30007894 |
| Product Type | UPS |
Eaton USV 9SX3000I UPS 2700W/3000VA 8x C13 1x C19 Tower - 9SX3000I Akkus neu is an enterprise hardware item from EATON, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: EATON
- SKU: 30007894
- Stock status: InStock
- Product family: 9SXEBM96T (EBM Tower)| EBMCBL96T (2m-Batterieanschlusskabel)| Gigabit Network Card (Network-M2)| Modbus MS Card (ModBus-MS)| Network Card-MS (Network-MS)| Relay Card-MS (Relay-MS)
- Corresponding P/Ns: 9103-83957 9SX3000I EB031SP
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | UPS |
| Input voltage | 200V-240V AC |
| Output voltage | 200V-240V AC |
| Frequency limit (mains operation) | 50-60 Hz |
| Battery type | Maintenance-free, sealed lead-acid battery with suspended electrolyte, leak-proof |
| Battery status | The device is supplied with new batteries. |
| Max. Current per output | 10A C13, 16A C19 |
| Max. output power | 2700 Watt/3000VA |
| Normal battery life at full load (manufacturer's specification) | 6 minutes (2500 watts) |
| Operating time at half load (manufacturer's specification) | 10 Minuten (1800 Watt) |
| Input connections | |
| ERM connection | 1 |
| IEC 60320 C20 | 1 |
| Output connections | |
| IEC 60320 C19 | 1 |
| IEC 60320 C13 | 8 |
| Number of load segments | 2 |
| Interfaces | |
| USB | 1 |
| Management - RS-232 - DB9 | 1 |
| LED status display | |
| Operation | Yes |
| Battery operation | Yes |
| Battery change | Yes |
| Overload | Yes |
| Features | |
| Access via browser | no |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Batteries w/o Accessories w/o Management Module
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
