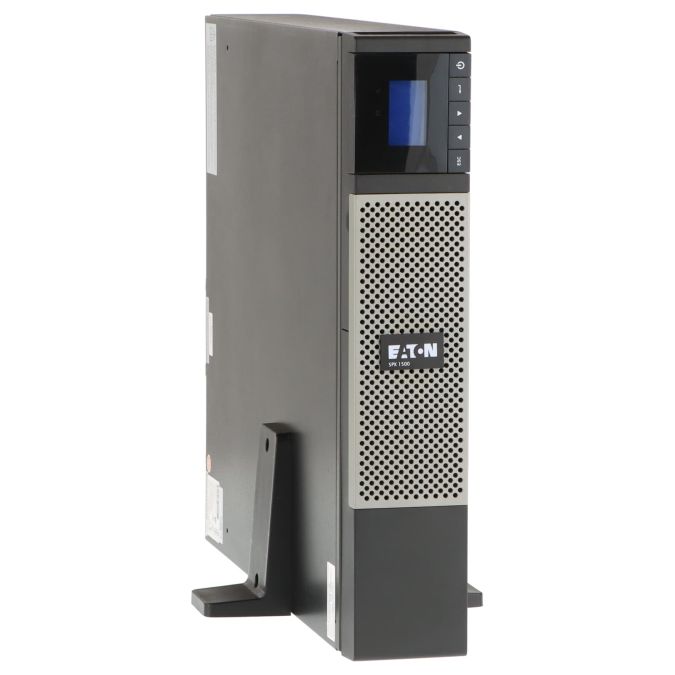

Eaton USV 5PX1500IRT 1500VA/1350W 8x C13 Tower - 9210-6374 Akkus neu
| MPN | 5PX1500IRT |
|---|---|
| Applicability | General |
| Manufacturer | EATON |
| SKU | 30006877 |
| Product Type | Home |
Eaton USV 5PX1500IRT 1500VA/1350W 8x C13 Tower - 9210-6374 Akkus neu is an enterprise hardware item from EATON, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: EATON
- SKU: 30006877
- Stock status: InStock
- Product family: 5PXEBM48RT (EBM)| Gigabit Network Card (Network-M2)| Gigabit Network Card (Network-M3)| Network Card-MS (Network-MS)| Relay Card-MS (Relay-MS)
- Corresponding P/Ns: 5PX1500IRT 9210-6374-00P
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | UPS |
| Input voltage | 200V-240V AC |
| Output voltage | 200V-240V AC |
| Frequency limit (mains operation) | 50-60 Hz |
| Battery type | Maintenance-free, sealed lead-acid battery with suspended electrolyte, leak-proof |
| Battery status | The device is supplied with new batteries. |
| Max. Amperage | 10 A |
| Max. output power | 1500VA / 1350 Watt |
| Normal battery life at full load (manufacturer's specification) | 3 Minuten (1350 Watt) |
| Operating time at half load (manufacturer's specification) | 10 Minuten (675 Watt) |
| Input connections | |
| ERM connection | 1 |
| IEC 60320 C14 | 1 |
| Output connections | |
| IEC 60320 C13 | 8 |
| Number of load segments | 2 |
| Interfaces | |
| USB | 1 |
| Management - RS-232 - RJ-45 | 1 |
| LED status display | |
| Operation | Yes |
| Battery operation | Yes |
| Battery change | Yes |
| Overload | Yes |
| Features | |
| Access via browser | no |
Included in delivery: Item as described incl. Batteries incl. Feet incl. Front panel w/o Management Card w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
