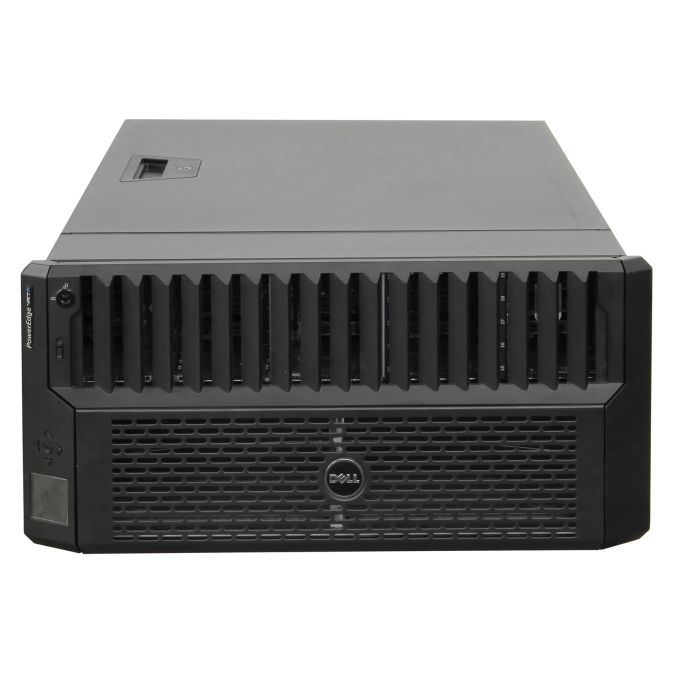

Dell PowerEdge VRTX 4x 1100W 1x CMC 1x 1GbE 1x PERC8 25x SFF
| MPN | 070K80 |
|---|---|
| Applicability | Server |
| Manufacturer | DELL |
| SKU | 10007623 |
| Product Type | Server |
Dell PowerEdge VRTX 4x 1100W 1x CMC 1x 1GbE 1x PERC8 25x SFF is an enterprise hardware item from Dell, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 10007623
- Category: Server / Dell / other
- Stock status: InStock
- Product family: PowerEdge M520| PowerEdge M620| PowerEdge M630| PowerEdge M640| PowerEdge M830
- Corresponding P/Ns: 070K80 07VM5P 0C2JRN 0GDPF3 0P3WV4 0Y1F41 70K80 7VM5P C2JRN GDPF3 P3WV4 Y1F41
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Enclosure model | PowerEdge VRTX |
| Number of slide-in units | 4 |
| Number of power supply units | 4 |
| Max. number of power supply units | 4 |
| Power per power supply unit (watts) | 1100 |
| Number of fans | 10 |
| Data transfer rate (Ethernet) | 1 Gbps |
| Modules | |
| Dell CMC Chassis Management Controller | 1 |
| Dell PERC8 RAID controller | 1 |
| Dell R1-2401 VRTX 1Gb Switch Module | 1 |
| Expansion slots | |
| PCIe x8 Low Profile | 5 |
| PCIe x16 | 3 |
| Hard disc type | |
| SAS 6G/SSD | Yes |
| Data carrier | |
| Total capacity (GB) | 0 |
| max. hard discs | 25 |
| Connections | |
| Network - Ethernet - RJ-45 | 8 |
| USB | 2 |
| VGA | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - DB9 | 1 |
| Power supply | |
| IEC 60320 C14 | 4 |
Included in delivery: Item as described incl. 2x SAS Backplane incl. Front panel with key incl. Power cable w/o Rack mounting rails w/o Software / Drivers w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
