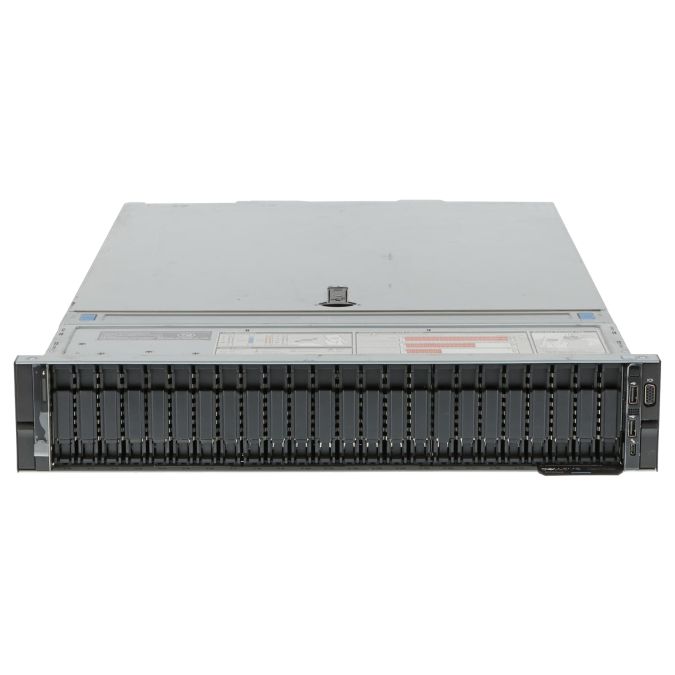

Dell PowerEdge R740 Server 2x Xeon Gold 6252 24-Core 2.1GHz 768GB DDR4 RAM H740P 16x SFF (SAS/SATA)
| Applicability | Server |
|---|---|
| Manufacturer | DELL |
| SKU | 30010378 |
| Product Type | Server |
Dell PowerEdge R740 Server 2x Xeon Gold 6252 24-Core 2.1GHz 768GB DDR4 RAM H740P 16x SFF (SAS/SATA) is an enterprise hardware item from Dell, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 30010378
- Category: Server / Dell / 14. Generation
- Stock status: InStock
- Corresponding P/Ns: Dell PowerEdge R740 Server
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6252 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2100 |
| Number of cores per CPU | 24 |
| Working memory (GB) | 768 |
| Memory type | DDR4 RAM |
| Number of DIMM slots | 24 |
| Hard disc type | SAS/SATA SFF |
| Hot plug | Yes |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 750 |
| Number of fans | 6 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 16 |
| PCI devices onboard | |
| Device_1 | Dell / Intel X550-T4 4x 10GbE Network Daughter Card rNDC |
| Device_2 | PERC H740P SAS/SATA RAID controller |
| Device_4 | Remote Access Controller (iDRAC 9 Enterprise) |
| Expansion slots | |
| OCP Mezzanine Connector | 1 |
| PCIe 3.0 x8 | 3 |
| Connections | |
| VGA | 2 |
| 10 Gigabit Ethernet, RJ-45 | 4 |
| Management | 1 |
| iDRAC Direct Port (Micro-USB) | 1 |
| Serial Port | 1 |
| USB | 2 |
| USB 3.0 | 2 |
Included in delivery: Item as described incl. Blanking panels for hard disk bays incl. Power cable w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| Applicability | Server |
|---|---|
| Manufacturer | DELL |
| SKU | 30010378 |
| Product Type | Server |
