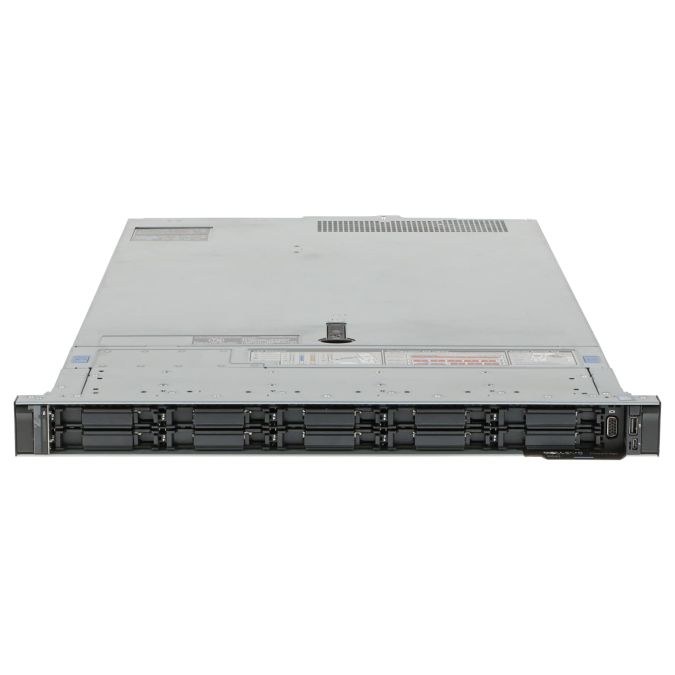

Dell PowerEdge R640 Server 2x Xeon Gold 6240Y 18C 2.7GHz 1.5TB 8x NVMe 2x SAS
| Applicability | Server |
|---|---|
| Manufacturer | DELL |
| SKU | 30004337 |
| Product Type | Server |
Dell PowerEdge R640 Server 2x Xeon Gold 6240Y 18C 2.7GHz 1.5TB 8x NVMe 2x SAS is an enterprise hardware item from Dell, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 30004337
- Stock status: InStock
- Corresponding P/Ns: Dell PowerEdge R640 Server
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6240Y |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2600 |
| Processor cache (MB) | 24,75 |
| Number of cores per CPU | 18 |
| Working memory (GB) | 1536 |
| Memory type | DDR4 RAM |
| Number of DIMM slots | 24 |
| Hard disc type | 2x SAS/SATA SFF + 8x NVMe/SAS/SATA SFF |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 750 |
| Number of fans | 8 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 2 |
| max. NVMe | 8 |
| PCI devices onboard | |
| Device_1 | Dell / Intel X550-T4 4x 10GbE Network Daughter Card rNDC |
| Device_2 | PERC H740P Mini SAS/SATA RAID controller |
| Device_3 | Dell PowerEdge S140 SATA / NVMe RAID Controller (RAID 0, 1, 5, 10) |
| Device_4 | Remote Access Controller (iDRAC 9 Enterprise) |
| Expansion slots | |
| PCIe 3.0 x16 Low Profile | 3 |
| Connections | |
| VGA | 2 |
| 10 Gigabit Ethernet, RJ-45 | 4 |
| Management | 1 |
| iDRAC Direct Port (Micro-USB) | 1 |
| Serial Port | 1 |
| USB | 1 |
| USB 3.0 | 3 |
Included in delivery: Item as described incl. Blanking panels for hard disk bays incl. Power cable w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
