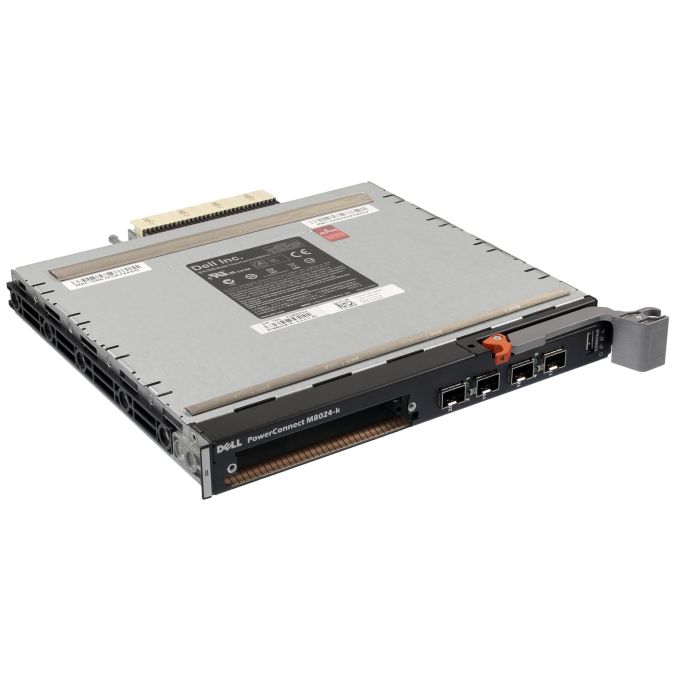

Dell PowerConnect M8024-K Switch 10GbE - 0HK53G
In stock
SKU
50012421
€504.82
| MPN | 0HK53G |
|---|---|
| Applicability | Server |
| Manufacturer | DELL |
| SKU | 50012421 |
| Product Type | Server |
Dell PowerConnect M8024-K Switch 10GbE - 0HK53G is an enterprise hardware item from Dell, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 50012421
- Stock status: InStock
- Product family: Dell PowerEdge M1000e (Midplane v1.1)
- Corresponding P/Ns: 0HK53G HK53G
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch module |
| Type of construction | Plug-in module |
| Data Link Protocol | Gigabit Ethernet, 10GbE |
| Data transfer rate (Ethernet) | 10 Gbps, 1 Gbps |
| Performance features | |
| ACL | Yes |
| ARP | Yes |
| Auto MDI/MDI-X | Yes |
| CLI | Yes |
| DHCP | Yes |
| DVMRP | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| IGMP | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| Managebar | Yes |
| OSI layer | 2, 3 |
| OSPF | Yes |
| QoS | Yes |
| RADIUS | Yes |
| RIP v1 | Yes |
| SNMPv1 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SSH | Yes |
| SSH v2 | Yes |
| SSL | Yes |
| TACACS+ | Yes |
| TFTP | Yes |
| Telnet | Yes |
| VLAN | Yes |
| Product certifications (IEEE) | |
| 802.1AB Data Centre Bridging Capability Exchange Protocol (DCBX) | Yes |
| 802.1D Spanning Tree Protocol (STP) | Yes |
| 802.1Q Tagged VLAN (frame tagging on all ports when VLANs are enabled) | Yes |
| 802.1p Class of Service (CoS) prioritisation | Yes |
| 802.1w Rapid STP (RSTP) | Yes |
| 802.1x port-based authentication | Yes |
| 802.2 Logical Link Control (LLC) | Yes |
| 802.3 10BASE-T Ethernet | Yes |
| 802.3ab 1000BASE-T copper twisted pair Gigabit Ethernet | Yes |
| 802.3ad Link Aggregation Control Protocol | Yes |
| 802.3ae 10GBASE-KR backplane 10 Gb Ethernet | Yes |
| 802.3ae 10GBASE-LR long range fibre optics | Yes |
| 802.3ae 10GBASE-SR short range fibre optics | Yes |
| 802.3ak 10GBASE-CX4 Ethernet over twinaxial cables | Yes |
| 802.3u 100BASE-TX Fast Ethernet | Yes |
| 802.3x full-duplex flow control | Yes |
| 802.3z 1000BASE-LX long range fibre optics Gigabit Ethernet | Yes |
| 802.3z 1000BASE-SX short range fibre optics Gigabit Ethernet | Yes |
| Connections | |
| Network - Ethernet - SFP+ | 4 |
| Management - RS-232 - USB | 1 |
| Modules | |
| Module slots (free) | 1 |
| Note | |
| Special feature | PowerEdge M1000e Midplane v1.1 required! |
| External 10Gb port | 4 |
| Internal 10Gb port | 16 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
