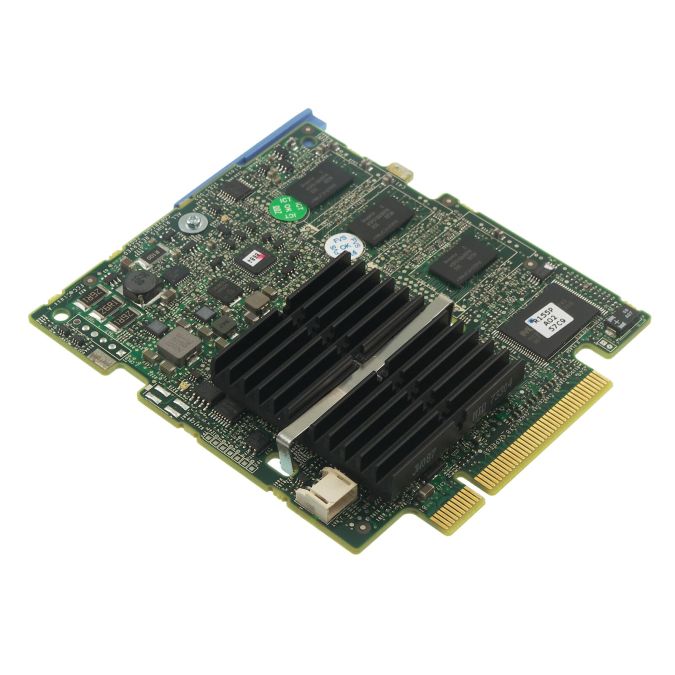

Dell PERC H700 Modular 1CH/512MB/SAS 6G/PCI-E - F2WGY
| MPN | 0F2WGY |
|---|---|
| Applicability | Server |
| Manufacturer | DELL |
| SKU | 50008481 |
| Product Type | RAID Controller |
Dell PERC H700 Modular 1CH/512MB/SAS 6G/PCI-E - F2WGY is an enterprise hardware item from Dell, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 50008481
- Stock status: InStock
- Product family: PowerEdge M610| PowerEdge M610x| PowerEdge M710| PowerEdge M910
- Corresponding P/Ns: 0F2WGY F2WGY
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller (integrated) |
| Controller interface type | SAS 6G |
| Form factor | Plug-in module |
| Number of channels | 1 |
| Data transfer rate in MByte/s | 600 |
| Max. number of peripheral devices | 4 |
| PCI variant | PCI-E x4 |
| Buffer size (MB) | 512 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
Included in delivery: Item as described w/o Battery
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
