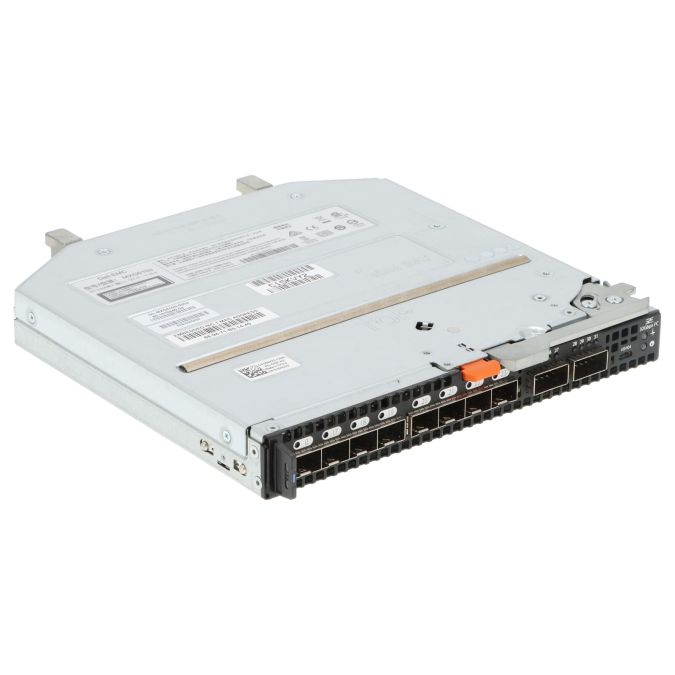

Dell Networking MXG610s FC Switch 32Gbps 8 Active Ports PowerEdge MX7000 - 9NXH2
In stock
SKU
50022549
€546.96
| MPN | 09NXH2 |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 50022549 |
| Product Type | Server |
Dell Networking MXG610s FC Switch 32Gbps 8 Active Ports PowerEdge MX7000 - 9NXH2 is an enterprise hardware item from Dell, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 50022549
- Category: Network / Switch / Switch Modules
- Stock status: InStock
- Product family: Dell Emulex LPm31002 Dual Port FC16 Mini-Mezz Card| Dell Emulex LPm32002 Dual Port FC32 Mini-Mezz Card| Dell PowerEdge MX7000 Enclosure| Dell PowerEdge MX740c Server| Dell PowerEdge MX750c Server| Dell PowerEdge MX760c Server| Dell PowerEdge MX840c Server| Dell QLogic 2692 Dual Port FC16 Mini-Mezz Card| Dell QLogic 2742 Dual Port FC32 Mini-Mezz Card
- Corresponding P/Ns: 09NXH2 80-1010540-04 9NXH2 DL-MXG610S-0004 MXG610s
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Fibre Channel Switch Module |
| Type of construction | Plug-in module |
| Data Link Protocol | 32Gb Fibre Channel |
| Data transfer rate (FC) | 32 Gbps, 16 Gbps, 8 Gbps |
| Maximum Power Rating | 60 watts |
| RAM | 2 GB |
| max. power | 1024 Gbps |
| Performance features | |
| HTTP | Yes |
| HTTPS | Yes |
| IP Filtering | Yes |
| IPsec | Yes |
| LDAP | Yes |
| Port Binding | Yes |
| RADIUS | Yes |
| SFTP | Yes |
| SNMPv1 | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| SSL | Yes |
| Switch Binding | Yes |
| TACACS+ | Yes |
| Connections | |
| Network - FC - QSFP+ | 2 |
| Network - FC - SFP+ | 8 |
| Management - RS-232 - Micro-USB | 1 |
| Installed licences | |
| Active Ports | 8 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 09NXH2 |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 50022549 |
| Product Type | Server |
