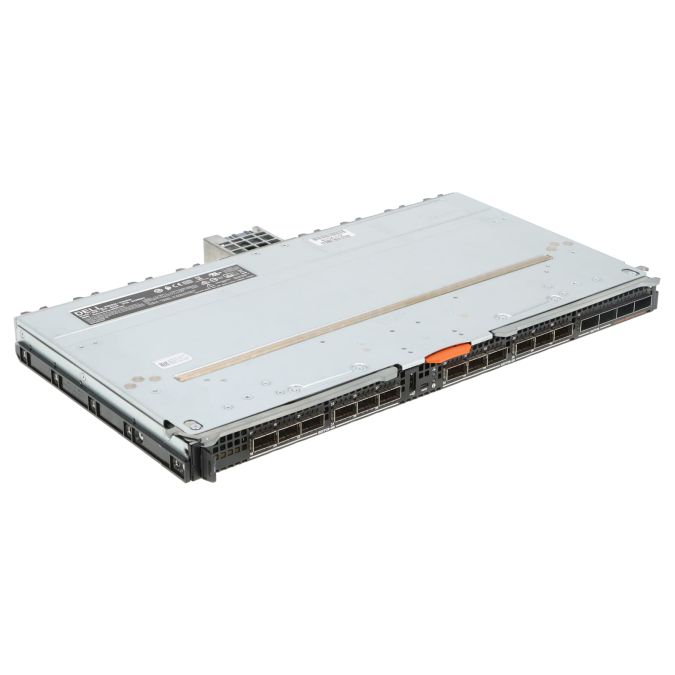

Dell Networking MX9116n 25GbE Fabric Switch PowerEdge MX7000 - RFX85
In stock
SKU
50022553
€782.60
| MPN | 0RFX85 |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 50022553 |
| Product Type | Network Adapter |
Dell Networking MX9116n 25GbE Fabric Switch PowerEdge MX7000 - RFX85 is an enterprise hardware item from Dell, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 50022553
- Category: Network / Switch / Switch Modules
- Stock status: InStock
- Product family: Dell Intel XXV710 Dual Port 25GbE Mezz Ethernet Adapter| Dell Mellanox ConnectX-4 LX Dual Port 25GbE Ethernet Mezz Adapter| Dell Networking MX7116n Fabric Expander Module| Dell PowerEdge MX7000 Enclosure| Dell PowerEdge MX740c Server| Dell PowerEdge MX750c Server| Dell PowerEdge MX760c Server| Dell PowerEdge MX840c Server| Dell QLogic 41232 Dual Port 25GbE Ethernet Mezz Adapter| Dell QLogic 41262 Dual Port 25GbE Storage Offload Ethernet Mezz Adapter
- Corresponding P/Ns: 0RFX85 E23M003 MX9116n RFX85
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch module |
| Type of construction | Plug-in module |
| Data Link Protocol | 100GbE, 25Gbps FCoE, 32Gbps FC |
| Data transfer rate (Ethernet) | 100 Gbps, 25 Gbps, 10 Gbps, 1 Gbps |
| Data transfer rate (FC) | 32 Gbps, 16 Gbps |
| Maximum Power Rating | 260 watts |
| max. power | 6.4 Tbps |
| Performance features | |
| ACL | 2303 Ingress / 511 Egress |
| ARP | 48.000 entries |
| FTP | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| MSTP | Yes |
| Managebar | Yes (CLI / Web GUI) |
| OSI layer | 2, 3 |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| PVST+ | 128 instances |
| Port Mirroring | Yes |
| QoS | Yes |
| RADIUS | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| TACACS+ | Yes |
| TFTP | Yes |
| Telnet | Yes |
| VLAN | Layer 2: 60K / Layer 3: 30K |
| VRRP | Yes |
| Connections | |
| Network - Ethernet - QSFP28 | 4 |
| Network - Ethernet - QSFP28-DD | 16 |
| Management - RS-232 - Micro-USB | 1 |
| Management - USB - USB A | 1 |
| Note | |
| Software version | Dell SmartFabric OS10 - Enterprise |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 0RFX85 |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 50022553 |
| Product Type | Network Adapter |
