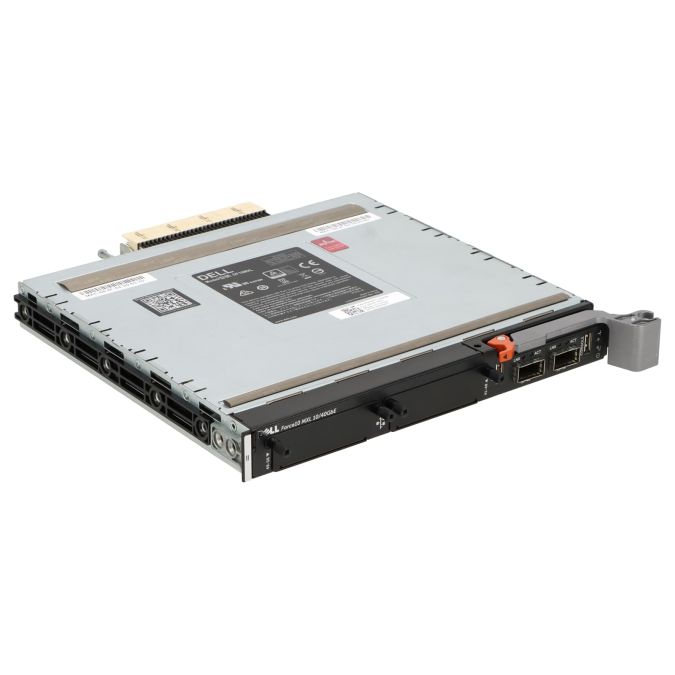

Dell Force10 MXL 10/40GbE Blade Switch PowerEdge M1000e - 0NVH81
In stock
SKU
50023478
€209.84
| MPN | 0NVH81 |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 50023478 |
| Product Type | Server |
Dell Force10 MXL 10/40GbE Blade Switch PowerEdge M1000e - 0NVH81 is an enterprise hardware item from Dell, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 50023478
- Category: Network / Switch / Blade Switch
- Stock status: InStock
- Product family: 2-port QSFP+ 40GbE module| 4-port 10GBASE-T 10GbE copper module| 4-port SFP+ 10GbE module| Dell PowerEdge M1000e Blade Enclosure
- Corresponding P/Ns: 0NVH81 DF10MXL NVH81
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch module |
| Type of construction | Plug-in module |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10GbE, 40GbE |
| Data transfer rate (Ethernet) | 40 Gbps, 10 Gbps |
| Maximum Power Rating | 123 watts |
| RAM | 2 GB |
| max. power | 1.28 Tbps |
| Performance features | |
| ACL | 2000 ingress / 1000 egress |
| ARP | Yes |
| FTP | Yes |
| IPv4 | Yes |
| MSTP | Yes |
| OSPFv2 | Yes |
| PVST+ | Yes |
| RADIUS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2 | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| TACACS+ | Yes |
| TFTP | Yes |
| Telnet | Yes |
| VLAN | 4094 VLANs |
| VRRP | Yes |
| Connections | |
| Network - Ethernet - QSFP+ | 2 |
| Management - RS-232 - USB | 1 |
| Modules | |
| Module slots (free) | 2 |
| Note | |
| Special feature | PowerEdge M1000e Midplane v1.1 required! |
| External 40Gb port | 2 |
| Internal 10Gb port | 32 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 0NVH81 |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 50023478 |
| Product Type | Server |
