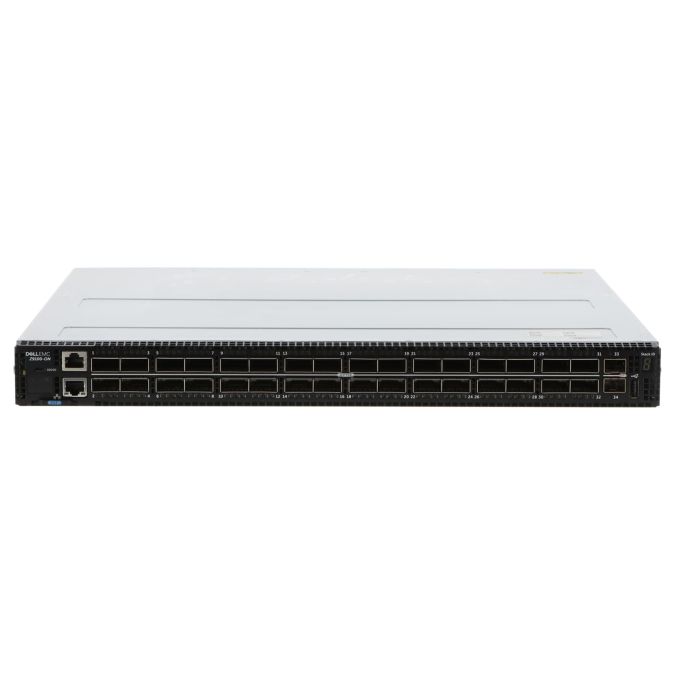

Dell EMC Switch Z9100-ON 32x 100GbE QSFP28 reverse airflow exclusive OS - 07MF5P
In stock
SKU
10010202
€589.10
| MPN | 07MF5P |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 10010202 |
| Product Type | Network Switch |
Dell EMC Switch Z9100-ON 32x 100GbE QSFP28 reverse airflow exclusive OS - 07MF5P is an enterprise hardware item from Dell, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 10010202
- Stock status: InStock
- Corresponding P/Ns: 07MF5P 0R17R1 0X3WCP 7MF5P R17R1 X3WCP Z9100-ON
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data transfer rate (Ethernet) | 100 Gbps, 50 Gbps, 40 Gbps, 25 Gbps, 10 Gbps, 1 Gbps |
| Number of fans | 5 |
| Power supply units | 2 |
| Max. number of power supply units | 2 |
| max. power | 6.4 Tbps |
| Airflow | Rear to front (reverse airflow) |
| Performance features | |
| ARP | Yes |
| BGP | Yes |
| CLI | Yes |
| FTP | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| MSTP | Yes |
| Managebar | Yes |
| OSPF | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| RADIUS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| RMON 1 | Yes |
| RMON 2 | Yes |
| RMON 3 | Yes |
| RMON 9 | Yes |
| RSTP | Yes |
| SSH | Yes |
| TACACS+ | Yes |
| Telnet | Yes |
| VLAN | Yes |
| Connections | |
| Network - Ethernet - QSFP28 | 32 |
| Network - Ethernet - RJ-45 | 1 |
| Network - Ethernet - SFP+ | 2 |
| USB | 1 |
| Management - RS-232 - Micro-USB | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Note | |
| Software version | Open Network Install Environment (ONIE) |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Power cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 07MF5P |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 10010202 |
| Product Type | Network Switch |
