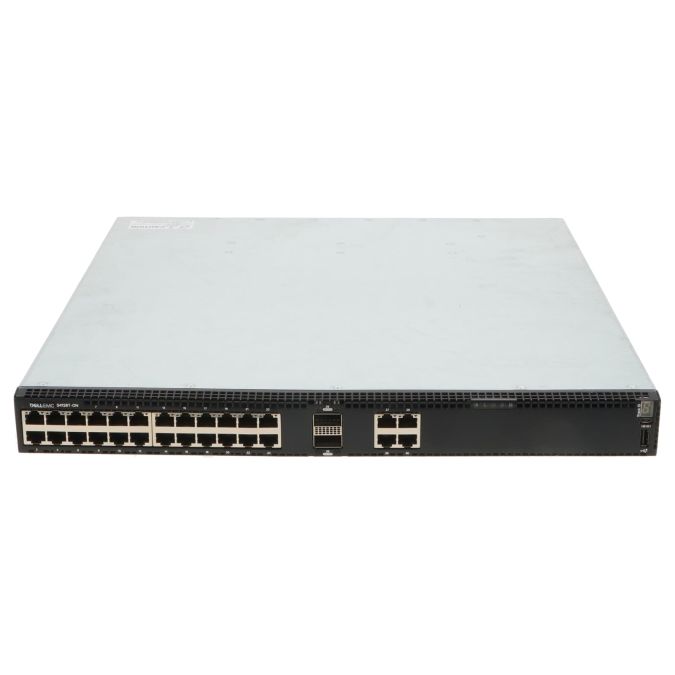

Dell EMC PowerSwitch S4128T-ON 28x RJ45 10GbE 2x QSFP28 100GbE FtB Airf - 00M7H7
| MPN | 00M7H7 |
|---|---|
| Applicability | Network |
| Manufacturer | DELL |
| SKU | 10010207 |
| Product Type | Network Switch |
Dell EMC PowerSwitch S4128T-ON 28x RJ45 10GbE 2x QSFP28 100GbE FtB Airf - 00M7H7 is an enterprise hardware item from Dell, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Dell
- SKU: 10010207
- Stock status: InStock
- Corresponding P/Ns: 00M7H7 06FKHH 0M7H7 0N7MH8 6FKHH N7MH8 PowerSwitch S4100-ON Series S4128T-ON
Use the product name, SKU and listed specifications to compare the item with your existing serverServer, storageStorage, workstation or networkNetwork configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data transfer rate (Ethernet) | 100 Gbps, 50 Gbps, 40 Gbps, 25 Gbps, 10 Gbps |
| Maximum Power Rating | 300 watts |
| Number of fans | 4 |
| Power supply units | 2 |
| Max. number of power supply units | 2 |
| max. power | 960 Gbps |
| Airflow | Front to back (power-side exhaust) |
| Performance features | |
| ARP | Yes |
| CLI | Yes |
| CPS (Control Plane Services) | Yes |
| ERPM (Encapsulated Remote Port Mirroring) | Yes |
| MSTP | Yes |
| Managebar | Yes |
| PTP (Precision Time Protocol) | Yes |
| RPM (Remote Port Mirroring) | Yes |
| SAI (Switch Abstraction Interface) | Yes |
| VLAN | Yes |
| VXLAN | Yes |
| Connections | |
| NetworkNetwork - Ethernet - QSFP28 | 2 |
| Network - Ethernet 10GBase-T - RJ-45 | 28 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - Micro-USB | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Note | |
| Software version | Open Network Install Environment (ONIE) |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Power cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
