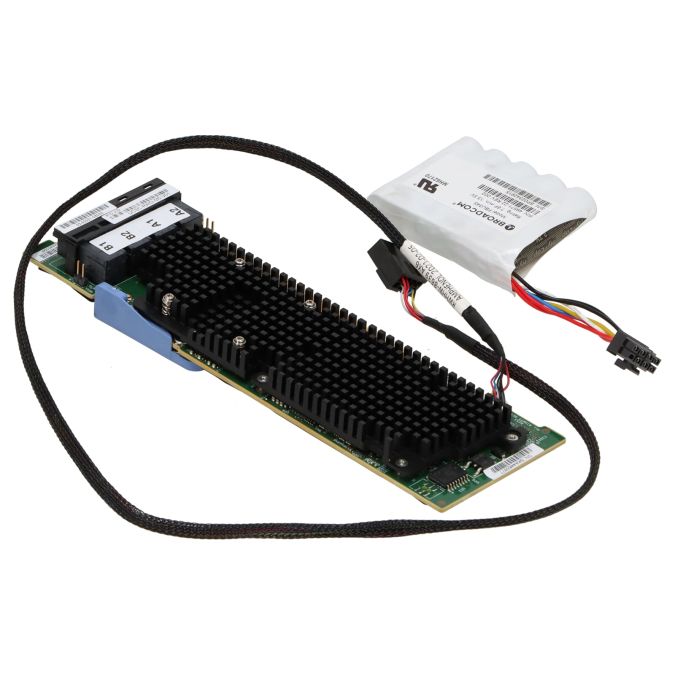

Cisco RAID Controller SAS 12G 2GB FBWC UCS C220 M5 - UCSC-RAID-M5 30-1565-01
| MPN | 30-1565-01 |
|---|---|
| Applicability | Server |
| Manufacturer | Cisco |
| SKU | 50023000 |
| Product Type | RAID Controller |
CiscoCisco RAID Controller SAS 12G 2GB FBWC UCS C220 M5 - UCSC-RAID-M5 30-1565-01 is an enterprise hardware item from CiscoCisco, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Cisco
- SKU: 50023000
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Product family: Cisco Flow Sensor ST-FS4240-K9| Cisco UCS C220 M5 24x SFF Rack Server| Cisco UCSC-C220-M5SX
- Corresponding P/Ns: 30-1565-01 30-1565-01 B0 UCSC-RAID-M5 UCSC-RAID-M5 V01 UCSC-SCAP-M5 UCSC-SCAP-M5 V01
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller |
| Controller interface type | SAS 12G |
| Form factor | Plug-in card (internal) |
| Number of channels | 4 |
| Battery module | Yes |
| Capacitor Pack | Yes |
| Controller cache memory (GB) | 2 |
| Data transfer rate (SAS) | 12 Gbps |
| Data transfer rate (SATA) | 6 Gbps |
| Low Profile | Yes |
| Max Drives Supported | 10 |
| PCI variant | PCI-E |
| Battery type | Capacitor |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| RAID level 60 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 4 |
Included in delivery: Item as described incl. Battery w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
