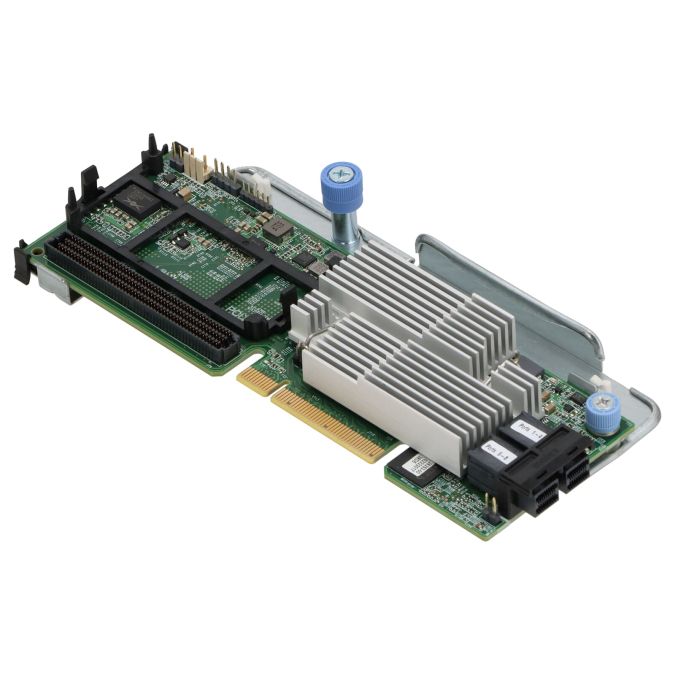

Cisco RAID Controller 12G SAS Modular C240 M4 - UCSC-MRAID12G 74-12862-02
| MPN | 74-12862-02 |
|---|---|
| Applicability | Server |
| Manufacturer | Cisco |
| SKU | 50022323 |
| Product Type | RAID Controller |
CiscoCisco RAID Controller 12G SAS Modular C240 M4 - UCSC-MRAID12G 74-12862-02 is an enterprise hardware item from CiscoCisco, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Cisco
- SKU: 50022323
- Stock status: InStock
- Product family: Cisco UCS C220 M4 SFF| Cisco UCS C240 M4 SFF
- Corresponding P/Ns: 74-12862-02 74-12862-02 A0 UCSC-MRAID12G UCSC-MRAID12G V02
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Note | |
| Special feature | Raid 5/6 only with FBWC option |
| Device type | RAID controller |
| Controller interface type | SAS 12G |
| Form factor | Plug-in card (internal) |
| Number of channels | 2 |
| Data transfer rate (SAS) | 12 Gbps |
| Data transfer rate (SATA) | 6 Gbps |
| Max Drives Supported | 24 |
| PCI variant | PCI-E x8 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID level 10 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 2 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
