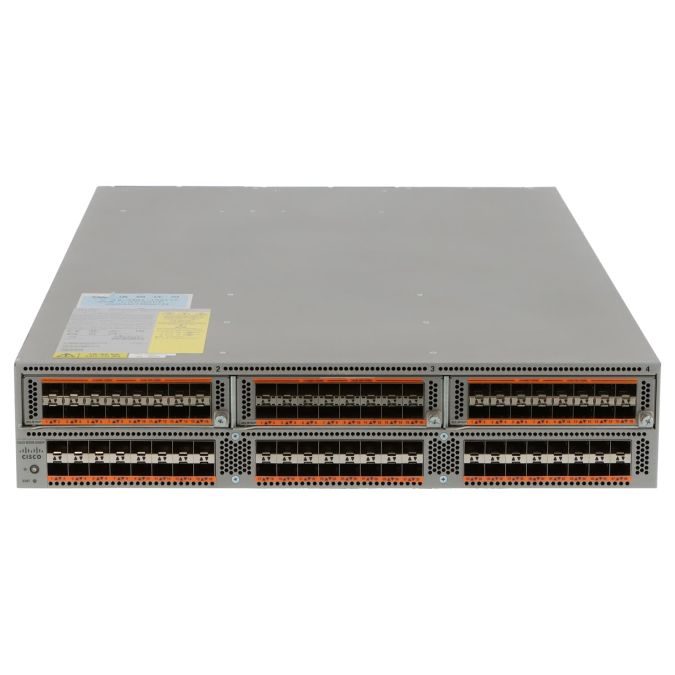

Cisco Nexus 5596UP Switch 96x 10GbE / 8Gbit FC SFP+ 3x N55-M16UP - N5K-C5596UP
| MPN | 68-3884-04 |
|---|---|
| Applicability | Network |
| Manufacturer | Cisco |
| SKU | 10010112 |
| Product Type | Transceiver |
CiscoCisco Nexus 5596UP Switch 96x 10GbE / 8Gbit FC SFP+ 3x N55-M16UP - N5K-C5596UP is an enterprise hardware item from CiscoCisco, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Cisco
- SKU: 10010112
- Stock status: InStock
- Product family: Cisco Nexus 2000 Series| Cisco Nexus 2224TP| Cisco Nexus 2232PP| Cisco Nexus 2232TM| Cisco Nexus 2232TM-E| Cisco Nexus 2248PQ| Cisco Nexus 2248TP| Cisco Nexus 2248TP-E| Cisco Nexus 7000 Series| Cisco Nexus B22DELL| Cisco Nexus B22F| Cisco Nexus B22HP
- Corresponding P/Ns: 68-3884-04 68-3936-03 N55-M16UP N55-PAC-1100W N5596UP-FAN N5K-C5596UP N5K-C5596UP-FA Nexus 5500 Series
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | 10Gb Ethernet 8Gb Fibre Channel Switch |
| Type of construction | Rack-mountable, 2U |
| Data Link Protocol | 1/10Gb Ethernet, 1/2/4/8Gb FCoE, 1/2/4/8Gb FC |
| Data transfer rate (Ethernet) | 10 Gbps, 1 Gbps |
| Data transfer rate (FC) | 8 Gbps, 4 Gbps, 2 Gbps |
| Number of fans | 4 |
| Power supply units | 2 |
| Max. number of power supply units | 2 |
| max. power | 1920 Gbps |
| Airflow | Front to Rear (Power Side Intake) |
| Performance features | |
| ACL | Yes |
| ARP | Yes |
| CLI | Yes |
| DHCP | Yes |
| EIGRP | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| Layer | 2, 3 |
| Managebar | Yes |
| QoS | Yes |
| RADIUS | Yes |
| RIP v2 | Yes |
| RMON 1 | Yes |
| RMON 2 | Yes |
| RMON 3 | Yes |
| RMON 9 | Yes |
| SNMPv1 | Yes |
| SNMPv2 | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| TACACS+ | Yes |
| Telnet | Yes |
| VLAN | Yes |
| Product certifications (IEEE) | |
| 802.1D Spanning Tree Protocol (STP) | Yes |
| 802.1Q Tagged VLAN (frame tagging on all ports when VLANs are enabled) | Yes |
| 802.1Qaz Enhanced Transmission Selection (ETS) | Yes |
| 802.1p Class of Service (CoS) prioritisation | Yes |
| 802.1s Multiple STP (MSTP) | Yes |
| 802.1w Rapid STP (RSTP) | Yes |
| 802.3 10BASE-T Ethernet | Yes |
| 802.3ae 10GBASE-LR long range fibre optics | Yes |
| 802.3ae 10GBASE-SR short range fibre optics | Yes |
| 802.3z 1000BASE-LX long range fibre optics Gigabit Ethernet | Yes |
| 802.3z 1000BASE-SX short range fibre optics Gigabit Ethernet | Yes |
| Connections | |
| Network - Ethernet - RJ-45 | 2 |
| Network - Ethernet/FC - SFP+ | 96 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Modules | |
| N55-M16UP 16x Unified Port Module | 3 |
| Module slots | 3 |
| Module slots (free) | 0 |
| Note | |
| Special feature | Cisco Nexus 5596UP: 48 fixed ports configurable as 1 and 10 Gigabit Ethernet and FCoE or 8/4/2/1-Gbps native Fibre Channel |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Fan incl. Modules incl. Mounting bracket incl. Power cable incl. Power supplies w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
