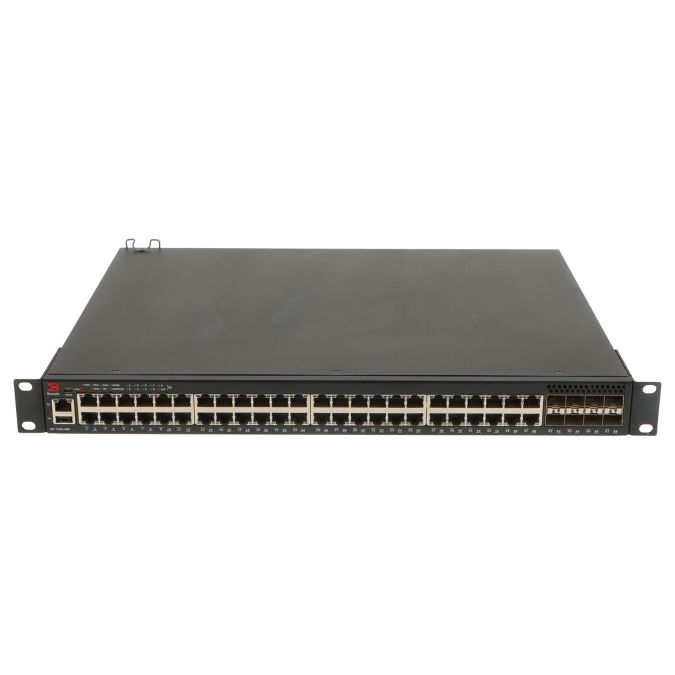

Brocade ICX 7250 Switch 48x 1GbE 740W PoE+ 8x SFP+ 1GbE 2x 10GbE Licence - ICX-7250-48P-2X10G
| MPN | 80-1008716-08 |
|---|---|
| Applicability | Network |
| Manufacturer | Brocade |
| SKU | 10010452 |
| Product Type | Transceiver |
Brocade ICX 7250 Switch 48x 1GbE 740W PoE+ 8x SFP+ 1GbE 2x 10GbE Licence - ICX-7250-48P-2X10G is an enterprise hardware item from Brocade, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Brocade
- SKU: 10010452
- Category: Network / Switch / Ethernet Switch
- Stock status: InStock
- Product family: Ruckus ICX-EPS4000-CBL-01 Power Cable 1:1| Ruckus ICX-EPS4000-CBL-02 Power Cable 1:2| Ruckus ICX-EPS4000-SHELF 1U External Power Supply shelf (EPS)| Ruckus ICX7000-RMK Rack Mount Kit two-post| Ruckus ICX7250-8X10G-LIC-POD Upgrade License to 8x 10GbE| Ruckus ICX7250-PREM-LIC Upgrade License to Layer 3 Premium Features| Ruckus XBR-R000295 Rack Mount Kit four-post
- Corresponding P/Ns: 80-1008716-08 ICX-7250-48P ICX-7250-48P-2X10G ICX7250-10G-LIC-POD ICX7250_L3_SOFT_PACKAGE
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data Link Protocol | Gigabit Ethernet, 10GbE |
| Data transfer rate (Ethernet) | 1 Gbps, 10 Gbps (uplink) |
| Maximum Power Rating | 880 watts |
| Number of fans | 3 |
| Power supply units | 1 |
| PoE Power | 740 watts (24x 30W, 48x 15.4W) |
| RAM | 2 GB |
| Flash memory | 2 GB |
| max. power | 256 Gbps |
| Airflow | side-to-back |
| Performance features | |
| Auto MDI/MDI-X | Yes |
| CLI | Yes |
| IGMP | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| MAC Address Table Size | 16384 |
| Managebar | Yes |
| OSI layer | 2, 3 |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| PoE | Yes |
| QoS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| STP | Yes |
| VLAN | 4096 VLANs |
| Connections | |
| Network - Ethernet - SFP+ | 8 (Uplink) |
| Network - PoE+ - RJ-45 | 48 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - Mini-USB | 1 |
| Installed licences | |
| 10G Port Upgrade licence | Capacity: 2 |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Mounting bracket incl. Power cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
