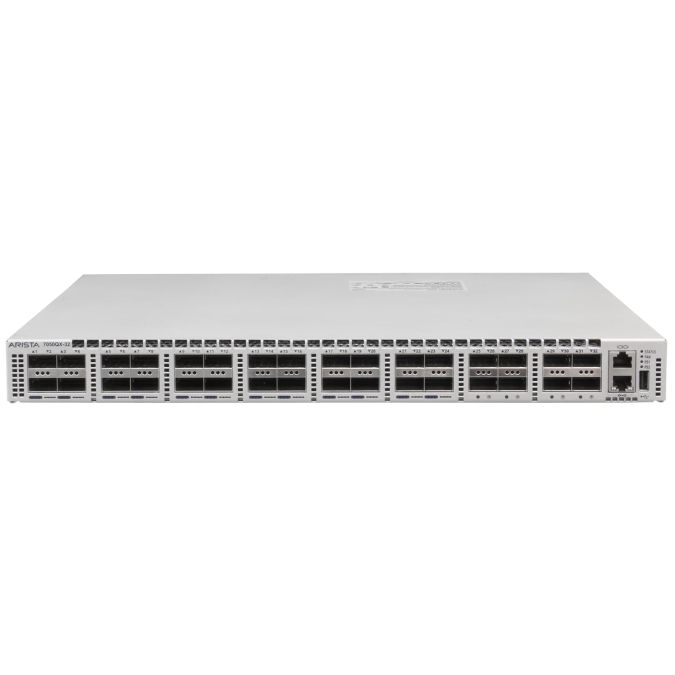

Arista Data Centre Switch 7050QX 32x QSFP+ 40Gbit - DCS-7050QX-32-R
| MPN | 7050QX |
|---|---|
| Applicability | Network |
| Manufacturer | ARISTA |
| SKU | 10006124 |
| Product Type | Transceiver |
Arista Data Centre Switch 7050QX 32x QSFP+ 40Gbit - DCS-7050QX-32-R is an enterprise hardware item from ARISTA, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: ARISTA
- SKU: 10006124
- Category: Network / Switch / Ethernet Switch
- Stock status: InStock
- Product family: Arista 7050X| Arista 7508E
- Corresponding P/Ns: 7050QX DCS-7050QX-32-R FAN-7000-R PWR-460AC-R
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10GbE, 40GbE |
| Data transfer rate (Ethernet) | 40 Gbps, 10 Gbps |
| Flash memory (MB) | 2048 |
| Power supply units | 2 |
| Processor | Dual Core x86 |
| RAM (MB) | 4096 |
| max. power | 2.56 Tbps |
| Airflow | Rear to Front |
| Performance features | |
| BGP | Yes |
| IGMP | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| IS-IS | Yes |
| MAC Address Table Size | 32000 |
| MSTP | Yes |
| OSPF | Yes |
| OSPFv3 | Yes |
| RADIUS | Yes |
| RIP v2 | Yes |
| RMON 1 | Yes |
| RMON 2 | Yes |
| RMON 3 | Yes |
| RMON 9 | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2 | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| STP | Yes |
| TACACS+ | Yes |
| Telnet | Yes |
| VLAN | 4096 VLANs |
| Product certifications (IEEE) | |
| 802.1AB Data Centre Bridging Capability Exchange Protocol (DCBX) | Yes |
| 802.1D Spanning Tree Protocol (STP) | Yes |
| 802.1Q Tagged VLAN (frame tagging on all ports when VLANs are enabled) | Yes |
| 802.1p Class of Service (CoS) prioritisation | Yes |
| 802.1s Multiple STP (MSTP) | Yes |
| 802.1w Rapid STP (RSTP) | Yes |
| 802.3ab 1000BASE-T copper twisted pair Gigabit Ethernet | Yes |
| 802.3ad Link Aggregation Control Protocol | Yes |
| 802.3ae 10GBASE-KR backplane 10 Gb Ethernet | Yes |
| 802.3ae 10GBASE-LR long range fibre optics | Yes |
| 802.3ae 10GBASE-SR short range fibre optics | Yes |
| 802.3ba 40GBASE-CR4 copper 40 Gb Ethernet | Yes |
| 802.3ba 40GBASE-SR4 short range fibre optics | Yes |
| Connections | |
| Network - Ethernet - QSFP+ | 32 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Network functions | |
| Max. supported ACLs | 4.000 |
| Jumbo frame size (in byte) | 9216 |
Included in delivery: Item as described incl. Power cable w/o Mounting bracket w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
