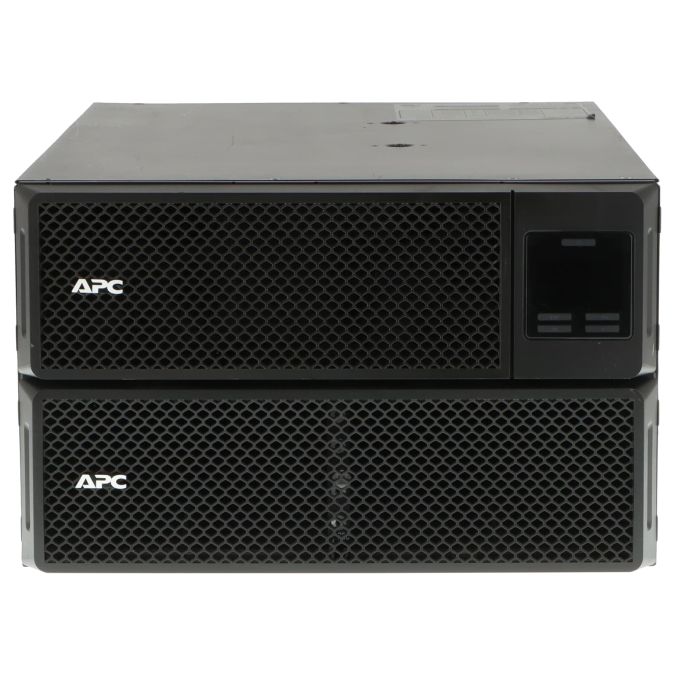

APC UPS Smart-UPS 10kVA/10kW 4x C19 6x C13 6U - SRT10KXLI Batteries new
| MPN | AP9537SUM |
|---|---|
| Applicability | Power |
| Manufacturer | APC |
| SKU | 30010601 |
| Product Type | UPS |
APC UPS Smart-UPS 10kVA/10kW 4x C19 6x C13 6U - SRT10KXLI Batteries new is an enterprise hardware item from APC, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: APC
- SKU: 30010601
- Category: Parts / Power Supply / UPS / Rack UPS
- Stock status: InStock
- Product family: APC Dry Contact I/O Zubehör AP9810| APC Service Bypass Panel SBP10KRMI4U| APC Service Bypass Panel SBP16KP| APC Service Bypass Panel SBP16KRMI4U| APC Smart-UPS SRT 192V Battery Pack SRT192BP2| APC Smart-UPS SRT 192V Battery Pack SRT192RMBP2| APC Smart-UPS SRT| 19 Schienen-Kit SRTRK2| APC Temperatur- und Feuchtigkeitssensor AP9335TH| APC Temperatursensor AP9335T"
- Corresponding P/Ns: AP9537SUM APCRBC140 SRT10KXLI
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | UPS |
| Input voltage | 220-240 V, 380-415 V |
| Output voltage | 220 - 240 VAC |
| Frequency limit (mains operation) | 50-60 Hz |
| Battery type | Maintenance-free, sealed lead-acid battery with suspended electrolyte, leak-proof |
| Battery status | The device is supplied with new batteries. |
| Max. Amperage | 54 A @ 1P, 18A @ 3P |
| Max. Current per output | 10A C13, 16A C19 |
| Mains switch | Yes |
| Max. output power | 10000VA / 10000 Watt |
| Normal battery life at full load (manufacturer's specification) | 3 min 45 sec (10000 Watt) |
| Operating time at half load (manufacturer's specification) | 11 min 27 sec (5000 Watt) |
| Management | Yes |
| Data transfer rate (Ethernet) | 10 Mbps, 100 Mbps |
| Input connections | |
| Connection terminal for hard-wired installation | 1 |
| Battery Detection Port | 1 |
| ERM connection | 1 |
| Output connections | |
| IEC 60320 C19 | 4 |
| IEC 60320 C13 | 6 |
| Number of load segments | 3 |
| Hard Wire 3-wire (1PH + N + G) | 1 |
| Interfaces | |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - 2.5mm jack | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Charging time | |
| Complete charging | 1.5 hours |
| Installed interface cards | |
| AP9631 UPS Network Management Card 2 | 1 |
| LED status display | |
| Operation | Yes |
| Battery operation | Yes |
| Battery change | Yes |
| Overload | Yes |
| Features | |
| Access via browser | Yes |
| Event log | Yes |
| Password security | Yes |
| Telnet administration | Yes |
| Protocols | |
| HTTPS | Yes |
| SMTP | Yes |
| SNMPv1 | Yes |
| SNMPv3 | Yes |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Batteries incl. Front panel w/o Rack mounting bracket w/o Rack mounting rails w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
