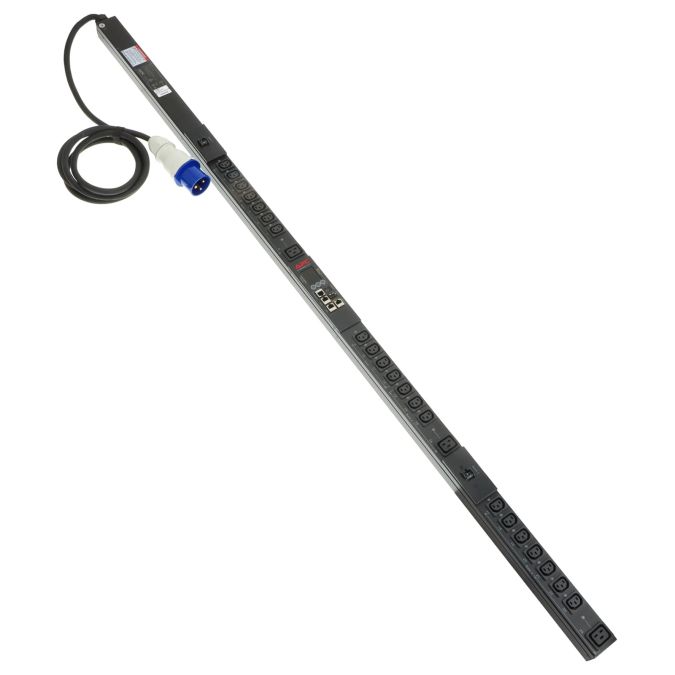

APC Rack PDU 32A 7,4kVA 1P+N+G - 21x C13 3x C19 - APDU9953 B-Ware
| MPN | APDU9953 |
|---|---|
| Applicability | Power |
| Manufacturer | APC |
| SKU | 10010204 |
| Product Type | Rack Accessory |
APC Rack PDU 32A 7,4kVA 1P+N+G - 21x C13 3x C19 - APDU9953 B-Ware is an enterprise hardware item from APC, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: APC
- SKU: 10010204
- Stock status: InStock
- Corresponding P/Ns: APDU9953
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | Power Distribution Unit (PDU) |
| Input voltage | 200V-240V AC, single-phase |
| Output voltage | 200V-240V AC |
| Frequency limit (mains operation) | 50-60 Hz |
| Cable length | 3m |
| Max. Amperage | 32 A |
| Max. Current per output | 10A C13, 16A C19 |
| Mains switch | Yes |
| Max. output power | 7.4kVA |
| Management | Yes |
| Data transfer rate (Ethernet) | 1 Gbps, 100 Mbps |
| Input connections | |
| IEC 60309 1P+N+PE 6h, 32A | 1 |
| Output connections | |
| IEC 60320 C19 | 3 |
| IEC 60320 C13 | 21 |
| Number of load segments | 2 |
| Interfaces | |
| USB | 1 |
| Management - Ethernet - RJ-45 | 1 |
| Management - USB - Micro-USB | 1 |
| Features | |
| Access via browser | Yes |
| Event log | Yes |
| Password security | Yes |
| Telnet administration | Yes |
| Protocols | |
| HTTP | Yes |
| HTTPS | Yes |
| SNMP | Yes |
| Note | |
| Optical defect | Power switch housing damaged. The function is not impaired. |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
