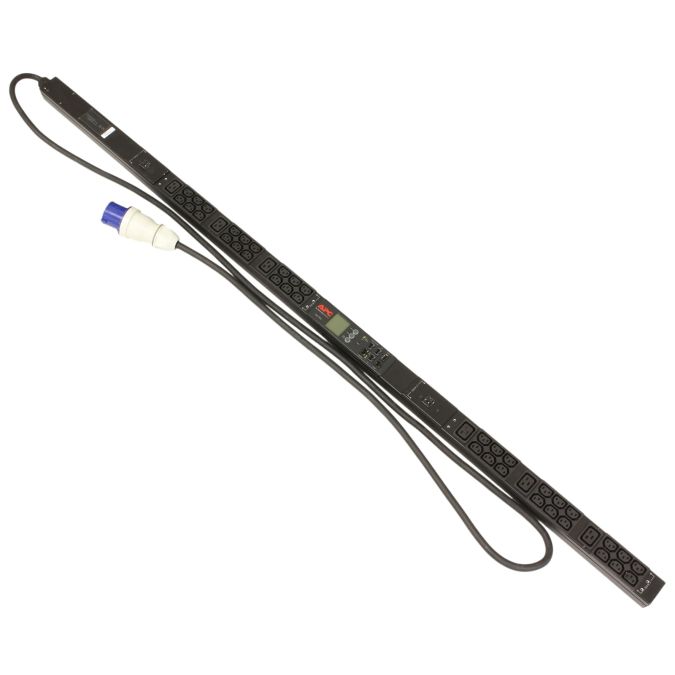

APC Rack PDU 1P+N+G - 36x C13 6x C19 32A 7.4kVA - AP8853
| MPN | AP8853 |
|---|---|
| Applicability | Power |
| Manufacturer | APC |
| SKU | 10005907 |
| Product Type | Rack Accessory |
APC Rack PDU 1P+N+G - 36x C13 6x C19 32A 7.4kVA - AP8853 is an enterprise hardware item from APC, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: APC
- SKU: 10005907
- Stock status: InStock
- Corresponding P/Ns: AP8853
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | Power Distribution Unit (PDU) |
| Input voltage | 200 V, 208 V, 230 V |
| Output voltage | 230 V |
| Frequency limit (mains operation) | 50-60 Hz |
| Cable length | 3 m |
| Max. Amperage | 32 A |
| Max. Current per output | 16 A |
| Input connections | |
| IEC 60309 1P+N+PE 6h, 32A | 1 |
| Output connections | |
| IEC 60320 C19 | 6 |
| IEC 60320 C13 | 36 |
| Number of load segments | 2 |
| Interfaces | |
| USB | 1 |
| Network - Ethernet - RJ-45 | 1 |
| Management - RS-232 - RJ-11 | 1 |
| LED status display | |
| Operation | Yes |
| Overload | Yes |
| Features | |
| Access via browser | Yes |
| Event log | Yes |
| Password security | Yes |
| Telnet administration | Yes |
Included in delivery: Item as described w/o Mounting bracket w/o RS-232 cable w/o Software / Documentation w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
