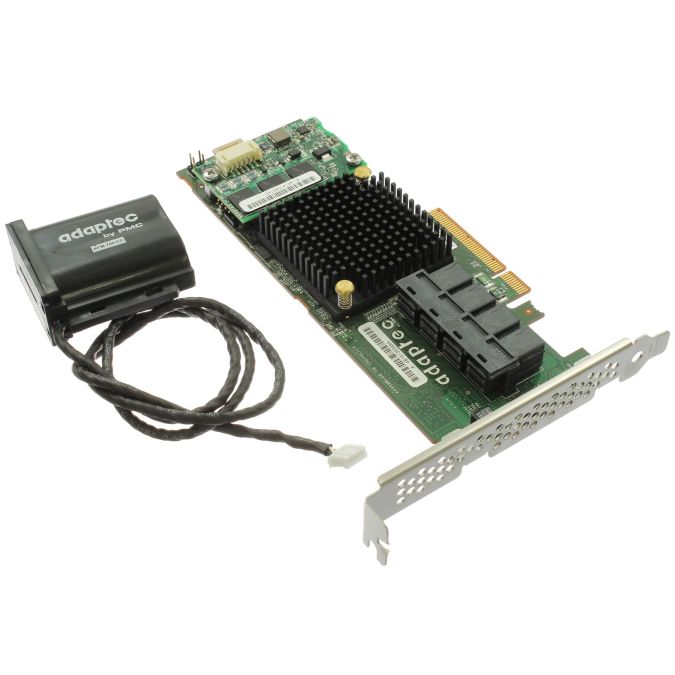

Adaptec RAID controller 4CH 1GB SAS SATA 6G PCI-E - ASR-71605
In stock
SKU
50013801
€58.05
| Applicability | Server |
|---|---|
| Manufacturer | Adaptec |
| SKU | 50013801 |
| Product Type | RAID Controller |
Adaptec RAID controller 4CH 1GB SAS SATA 6G PCI-E - ASR-71605 is an enterprise hardware item from Adaptec, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Adaptec
- SKU: 50013801
- Stock status: InStock
- Corresponding P/Ns: ASR-71605 1G
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller |
| Controller interface type | SAS/SATA |
| Form factor | Plug-in card |
| Number of channels | 4 |
| Battery module | Yes |
| Data transfer rate in MByte/s | 600 |
| Max Drives Supported | 256 |
| Max. number of peripheral devices | 16 |
| PCI variant | PCI-E 3.0 x8 |
| Buffer size (MB) | 1024 |
| Slot compatibility | at least PCI-E x8 |
| Battery type | Capacitor |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 1E | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| RAID level 60 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 4 |
Included in delivery: Item as described incl. Zero-Maintenance Cache Protection Kit (AFM 700)
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| Applicability | Server |
|---|---|
| Manufacturer | Adaptec |
| SKU | 50013801 |
| Product Type | RAID Controller |
