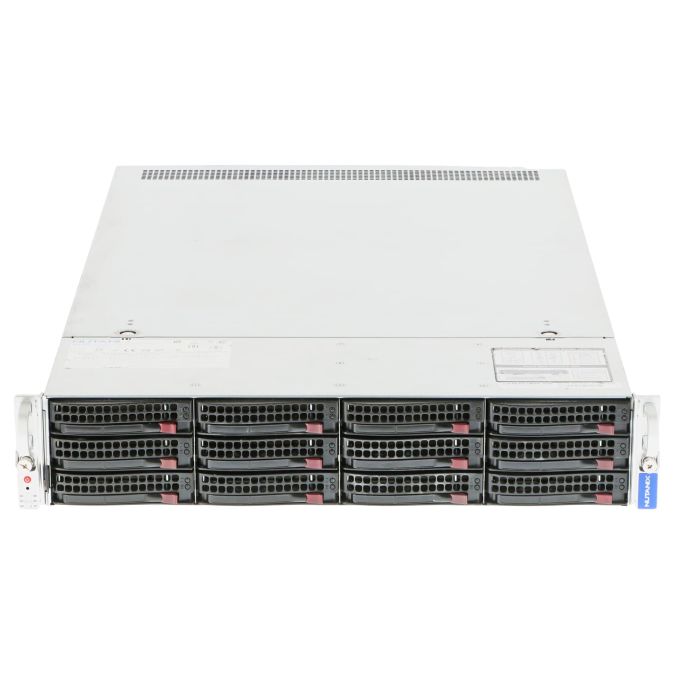

Nutanix NX-8155-G6 CTO Server 2x LGA3647 DDR4 X11DPU-G6 12x LFF
| MPN | 826A-N4-NI22 |
|---|---|
| Applicability | Server |
| Manufacturer | Nutanix |
| SKU | 10010050 |
| Product Type | Server |
Nutanix NX-8155-G6 CTO ServerServer 2x LGA3647 DDR4 X11DPU-G6 12x LFF is an enterprise hardware item from Nutanix, suitable for serverServer and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Nutanix
- SKU: 10010050
- Category: Server / Supermicro / Nutanix G6
- Stock status: InStock
- Corresponding P/Ns: 826A-N4-NI22 CSE-829U Nutanix UDT-1NL3-G6 NX-UDT-1NL3-G6 NXS2U1NL12G600 X11DPU-G6-NI22
Use the product name, SKU and listed specifications to compare the item with your existing server, storageStorage, workstation or networkNetwork configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Number of CPUs | 0 |
| Base type | FCLGA3647 |
| Number of CPU sockets | 2 |
| Working memory (GB) | 0 |
| Memory type | DDR4 RAM |
| Number of DIMM slots | 24 |
| Hard disc type | 8x SAS/SATA LFF - 4x SAS/NVMe LFF |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 1600 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 12 |
| PCI devices onboard | |
| Device_1 | 10 Gigabit Ethernet Controller X520-DA2 |
| Device_2 | without RAID controller |
| Device_4 | Intelligent Platform Management Interface v2.0 (IPMI 2.0) |
| Expansion slots | |
| PCIe x8 | 3 |
| PCIe x8 Low Profile | 1 |
| PCIe x8 Low Profile, Modular RAID controller only | 1 |
| PCIe x16 | 1 |
| M.2 SATA | 2 |
| Connections | |
| VGA | 1 |
| 10 Gigabit Ethernet, RJ-45 | 2 |
| Management | 1 |
| Serial Port | 1 |
| USB 3.0 | 3 |
| Note | |
| Special feature | A RAID controller is required for operation with hard drives. |
| CPU support | Xeon Scalable Gen1, Xeon Scalable Gen2 |
Included in delivery: Item as described incl. 12x hard disk frames with screws incl. Heatsinks incl. Power cable incl. SAS cable w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
