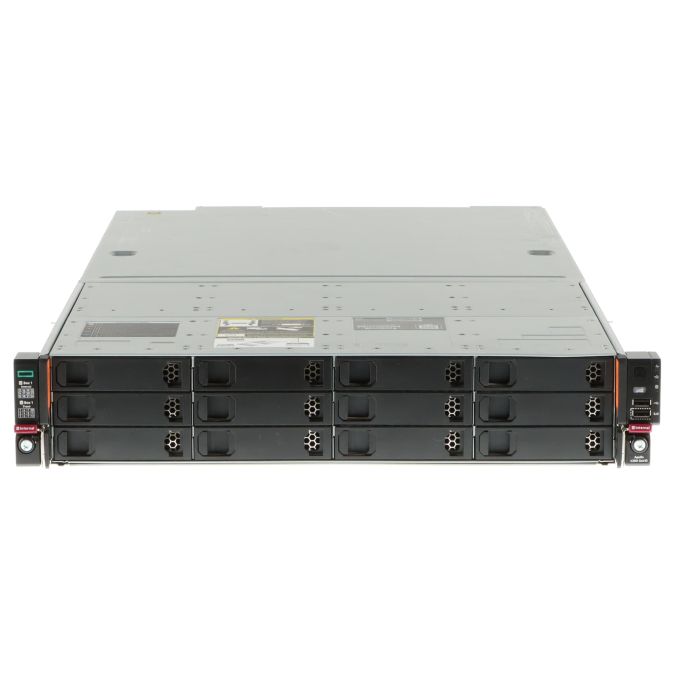

HPE Apollo 4200 Gen10 Server 2x Xeon Gold 6126 12C 2,6GHz 128GB 28x LFF P816i-a
| MPN | 809949-001 |
|---|---|
| Applicability | Server |
| Manufacturer | HPE |
| SKU | 30006965 |
| Product Type | Server |
HPE Apollo 4200 Gen10 Server 2x Xeon Gold 6126 12C 2,6GHz 128GB 28x LFF P816i-a is an enterprise hardware item from HPE, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 30006965
- Category: Server / HP / HPE / Apollo
- Stock status: InStock
- Corresponding P/Ns: 809949-001 809953-001 871041-001 Apollo 4200 Gen10 P07244-B21 P07943-B21 P10065-003 ProLiant XL420 Gen10
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6126 |
| Number of CPUs | 2 |
| Base type | FCLGA3647 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2600 |
| Processor cache (MB) | 19,25 |
| Number of cores per CPU | 12 |
| Working memory (GB) | 128 |
| Memory type | DDR4 RAM |
| Number of DIMM slots | 16 |
| Hard disc type | SAS/SATA LFF |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 800 |
| Number of fans | 10 |
| Type of construction | Rack |
| Version | 10 |
| Remote management | Integrated Lights-Out 5 (iLO 5) - Standard |
| Data transfer rate (SAS) | 12 Gbps, 6 Gbps |
| Data transfer rate (SATA) | 6 Gbps, 3 Gbps |
| Data transfer rate (Ethernet) | 1 Gbps |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 28 |
| PCI devices onboard | |
| Device_1 | Gigabit Ethernet 332i (NetXtreme BCM5720) |
| Device_2 | Smart Array S100i SR Gen10 SW RAID |
| Device_3 | Smart Array P816i-a SR Gen10 LH 4GB |
| Expansion slots | |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 Low Profile | 2 |
| PCIe 3.0 x24 Low Profile | 2 |
| Connections | |
| VGA | 1 |
| Network - Ethernet - RJ-45 | 2 |
| USB 3.0 | 2 |
| Management - Ethernet - RJ-45 | 2 |
| Note | |
| CPU support | 1st/2nd Generation Scalable Processor |
Included in delivery: Item as described incl. Power cable w/o Hard disk frame w/o Rack mounting rails w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
